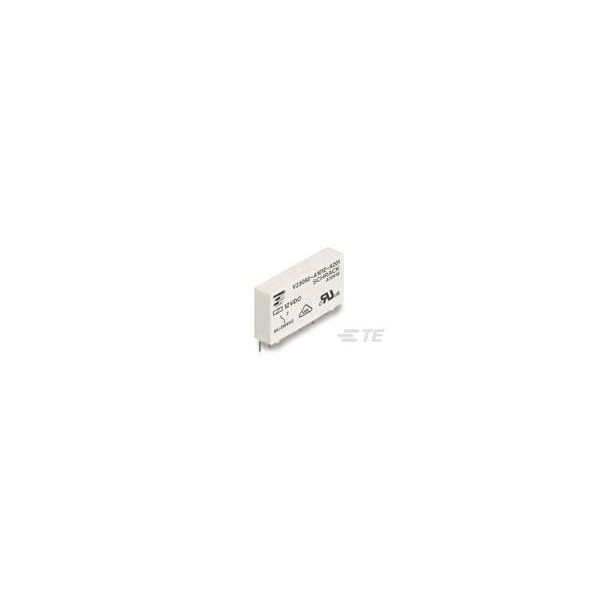

Te Connectivity PCB, PCB Relay, 10A, PCB 1-1415068-1 - main

PCB, PCB Relay, 10A, PCB

  • Mfr # 1-1415068-1

  • Zoro # G601033756

product price:  $6.95
/ea
Sold in multiples of 20 for $139.00

Key Features

Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
5V DC
Current Rating
6A
Power Consumption - Relay
170 mW
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1-1415068-1
Zoro #
G601033756
UPC #
-
Country of Origin
Czechia

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
5V DC
Current Rating
6A
Power Consumption - Relay
170 mW
Number of Poles
1
Contact Material
AgNi90/10
Coil Type
Monostable, DC
Contact Limiting Breaking Current
6A
Operating Temp. Range
70 to 85°C
Contact Limiting Short-Time Current
6A
Insulation Clearance
6 mm [ .236 in ]
Switching Current
100mA @ 12V
Contact Voltage Rating
250V AC
Coil Resistance
147 Ω
Contact Rating
6A
Contact Limiting Continuous Current
10A
Switching Voltage
400V AC
Insulation Creepage
8 mm [ .315 in ]
Protection Category
RTIII
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Making Current
6A
Contact Rating (AC)
6 A @ 250V
Contact Form
SPDT
Number of Pins
5
