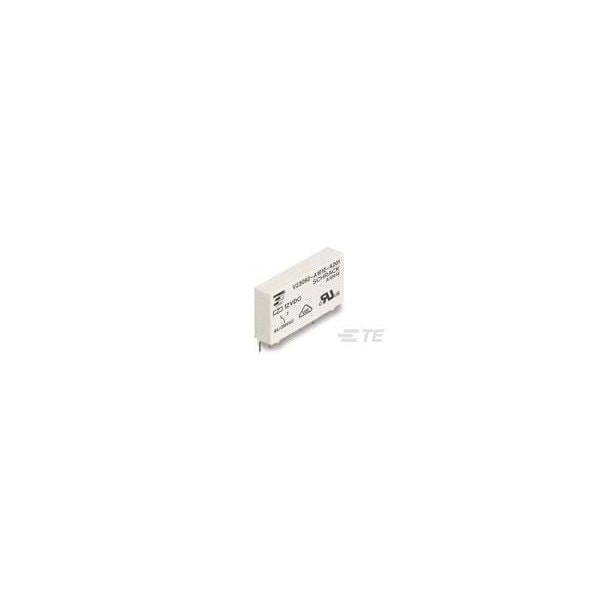

PCB, PCB Relay, 10A, PCB
Mfr # 7-1393236-0
Zoro # G901034767
product price: $7.85
/eaSold in multiples of 20 for $157.00
Key Features
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
10A
Number of Poles
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7-1393236-0
Zoro #
G901034767
UPC #
-
Country of Origin
Czechia
Details
Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
10A
Number of Poles
1
Power Consumption - Relay
170 mW
Contact Material
AgSnO
Contact Limiting Making Current
10A
Coil Type
Monostable, DC
Contact Limiting Breaking Current
6A
Insulation Clearance
6 mm [ .236 in ]
Insulation Creepage
8 mm [ .315 in ]
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Short-Time Current
6A
Operating Temp. Range
70 to 85°C
Switching Current
100mA @ 12V
Contact Rating
6A
Contact Limiting Continuous Current
10A
Contact Voltage Rating
250V AC
Coil Resistance
848 Ω
Protection Category
RTIII
Switching Voltage
400V AC
