Shop TE CONNECTIVITY

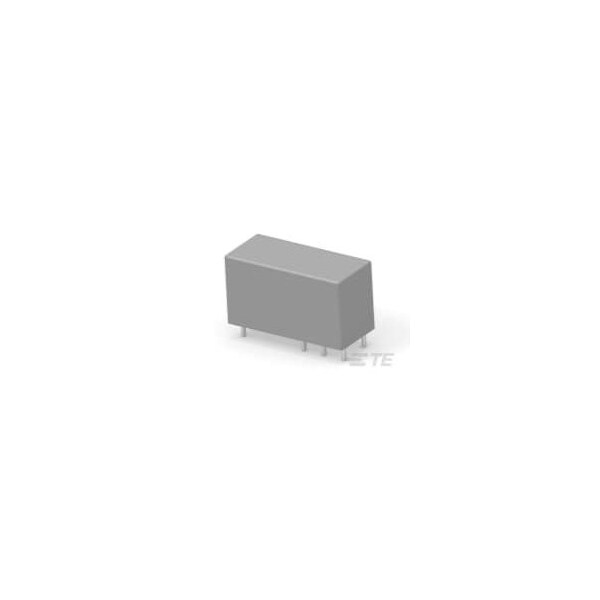

PCB, PCB Relay, 16 A, PCB

  • Mfr # 1-1415538-1
  • Zoro # G801025803
product price:
$
4.55
/ea
Sold in multiples of 20 for $91.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
12V DC
Current Rating
16 A
Contact Material
AgNi90/10
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1-1415538-1
Zoro #
G801025803
UPC #
-
Country of Origin
Austria
Item
Power PCB Relay
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
12V DC
Current Rating
16 A
Contact Material
AgNi90/10
Number of Poles
1
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Contact Rating
16A
Contact Voltage Rating
250V AC
Contact Limiting Continuous Current
26A
Coil Type
Monostable, DC
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Making Current
30A
Contact Limiting Short-Time Current
16A
Insulation Clearance
10 mm [ .394 in ]
Protection Category
RTII
Insulation Creepage
10 mm [ .394 in ]
Contact Limiting Breaking Current
16A
Operating Temp. Range
85 to 105°C
Coil Resistance
360 Ω
Switching Voltage
400V AC
Base Shape
Square
Contact Form
1 Form C (CO)
Contact Rating (AC)
16 A @ 250V
Number of Pins
8
