Shop TE CONNECTIVITY

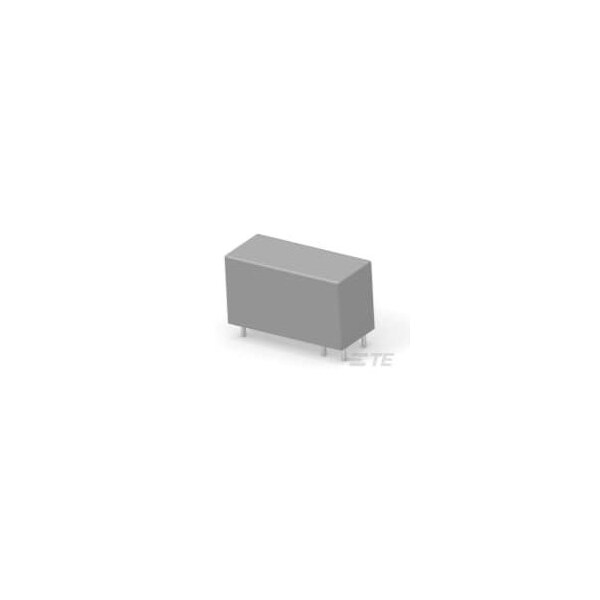

PCB, PCB Relay, 16 A, PCB

  • Mfr # 2-1415536-0

  • Zoro # G301026379

product price:  $3.35
/ea
Sold in multiples of 40 for $134.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
10 A @ 400V, 20A @ 250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1415536-0
Zoro #
G301026379
UPC #
-
Country of Origin
Austria

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
10 A @ 400V, 20A @ 250V
Power Consumption - Relay
400 mW
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Coil Resistance
1440 Ω
Contact Voltage Rating
250V AC
Contact Limiting Short-Time Current
16A
Insulation Clearance
10 mm [ .394 in ]
Switching Voltage
400V AC
Insulation Creepage
10 mm [ .394 in ]
Contact Rating
16A
Protection Category
RTII
Operating Temp. Range
85 to 105°C
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Continuous Current
26A
Coil Type
Monostable, DC
Contact Limiting Making Current
30A
Contact Limiting Breaking Current
16A
Base Shape
Square
Number of Pins
6
Contact Form
1 Form A (NO)
