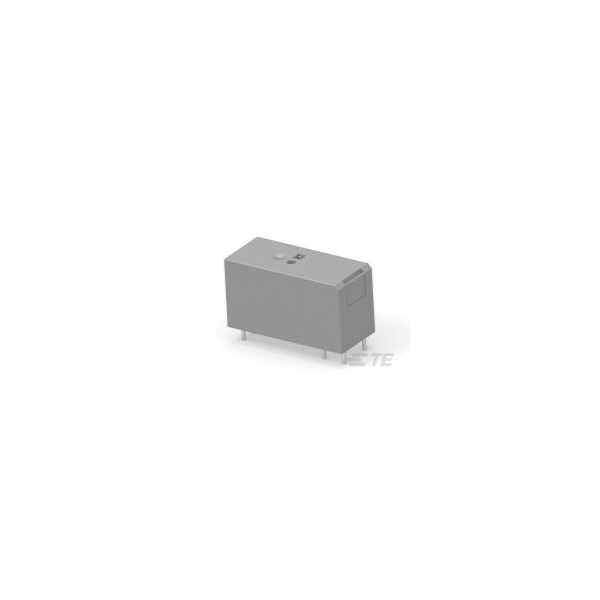

Te Connectivity PCB, PCB Relay, 16 A, PCB 3-1415540-0 - main

PCB, PCB Relay, 16 A, PCB

  • Mfr # 3-1415540-0

  • Zoro # G801016801

product price:  $7.29
/ea
Sold in multiples of 30 for $218.70

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
6V DC
Current Rating
16 A
Number of Poles
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1415540-0
Zoro #
G801016801
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
6V DC
Current Rating
16 A
Number of Poles
1
Power Consumption - Relay
655 mW
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Contact Rating
16A
Coil Type
Bistable, 2 Coils, Polarized
Contact Limiting Breaking Current
16A
Switching Voltage
400V AC
Contact Limiting Making Current
30A
Coil Resistance
55 Ω
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Protection Category
RTII
Contact Voltage Rating
250V AC
Contact Limiting Short-Time Current
16A
Insulation Clearance
10 mm [ .394 in ]
Operating Temp. Range
70 to 85°C
Contact Limiting Continuous Current
16A
Insulation Creepage
10 mm [ .394 in ]
Number of Pins
4
Contact Form
SPST-NO
Contact Rating (AC)
16 A @ 250V
Base Shape
Square

Description
