Shop TE CONNECTIVITY

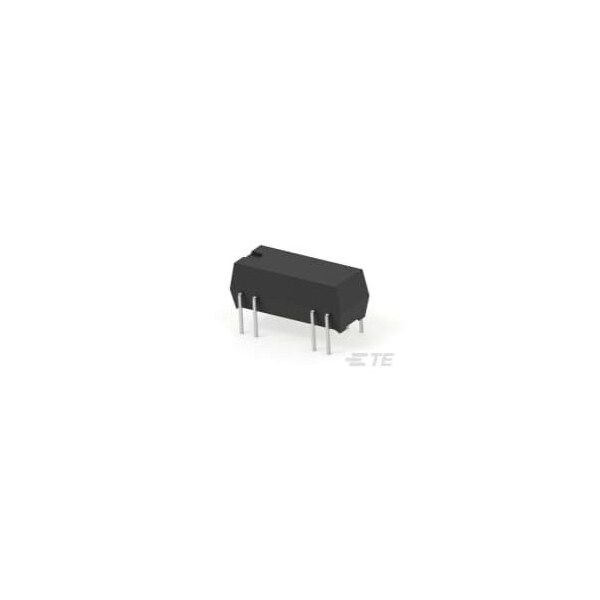

PCB, PCB Relay, 2 A, Through Hole

  • Mfr # 3-1393763-6

  • Zoro # G201033729

product price:
$
40.79
/ea
Sold in multiples of 25 for $1,019.75

Key Features

Mounting Style
PCB
Electrical Connection
Through Hole
Coil Voltage
15V DC
Current Rating
2 A
Contact Rating (DC)
2 A @ 24V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1393763-6
Zoro #
G201033729
UPC #
-
Country of Origin
Mexico

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
Through Hole
Coil Voltage
15V DC
Current Rating
2 A
Contact Rating (DC)
2 A @ 24V
Contact Material
AgNi+Au
Features
Diode; Reed Contacts; High Dielectric Type
Number of Poles
1
Power Consumption - Relay
50 to 288 mW
Contact Rating
2A
Contact Limiting Short-Time Current
.4 A
Contact Limiting Breaking Current
.4 A
Coil Type
Monostable, DC
Operating Temp. Range
-40 to 85°C
Switching Voltage
175 VDC
Protection Category
RTIII
Contact Limiting Making Current
.4 A
Dielectric Voltage
1500 Vrms Coil and Contact; 200 Vrms Open Contacts
Contact Voltage Rating
24 VDC
Coil Resistance
2000 Ω
Contact Limiting Continuous Current
1.2 A
Switching Current
10mA @ .01V
Base Shape
Square
Contact Form
SPDT
