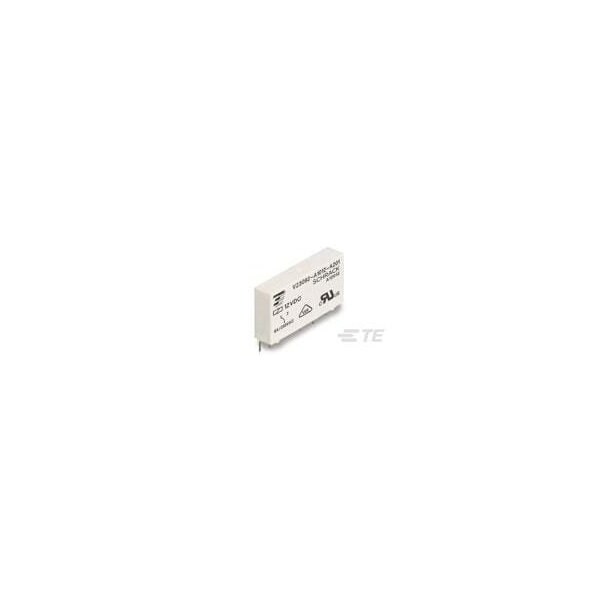

PCB, Power Relay, 10 A, 1, PCB
Mfr # 1393236-1
Zoro # G600983366
product price: $10.75
/eaSold in multiples of 20 for $215.00
Key Features
Mounting Style
PCB
Electrical Connection
PCB
Number of Pins
1
Coil Voltage
5V DC
Current Rating
10 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1393236-1
Zoro #
G600983366
UPC #
-
Country of Origin
Mexico
Details
Item
Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Number of Pins
1
Coil Voltage
5V DC
Current Rating
10 A
Contact Rating (AC)
0.25 A @ 250V AC
Power Consumption - Relay
170 mW
Contact Material
AgSnO2
Number of Poles
1
Coil Resistance
147 Ω
Insulation Creepage
.315 in
Coil Type
Monostable, DC
Dielectric Voltage
1000 V Coil and Contact
Contact Rating
0.25A
Switching Voltage
400 VAC
Protection Category
RTIII
Contact Limiting Making Current
10A
Contact Limiting Short-Time Current
6A
Contact Limiting Continuous Current
10A
Switching Current
100mA @ 12V
Contact Voltage Rating
250 VAC
Contact Limiting Breaking Current
6A
Operating Temp. Range
70 to 85°C
