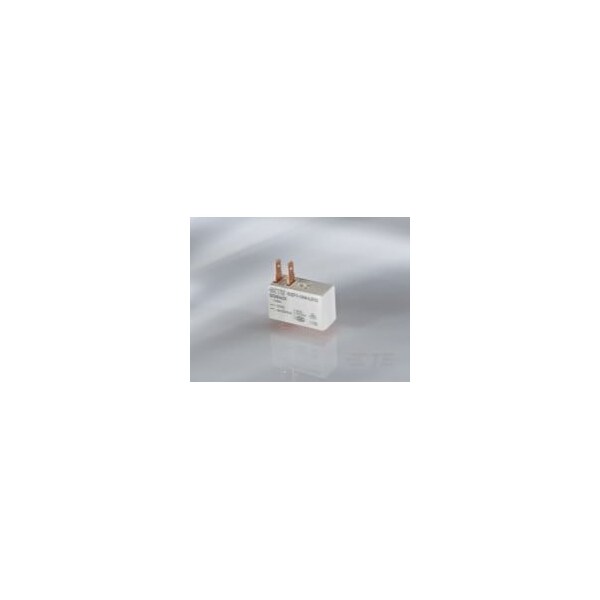

Te Connectivity PCB, Power Relay, 16 A, PCB 1833011-7 - main

PCB, Power Relay, 16 A, PCB

  • Mfr # 1833011-7

  • Zoro # G401025142

product price:  $2.65
/ea
Sold in multiples of 80 for $212.00

Key Features

Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
48V DC
Current Rating
16 A
Contact Form
SPST-NO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1833011-7
Zoro #
G401025142
UPC #
-
Country of Origin
China

Details

Item
Power Relay
Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
48V DC
Current Rating
16 A
Contact Form
SPST-NO
Power Consumption - Relay
530 mW
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
1
Operating Temp. Range
-40 to 85°C
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Clearance
5 to 8 mm
Contact Voltage Rating
250 VAC
Coil Type
Monostable, DC
Switching Voltage
400 VAC
Contact Limiting Making Current
16 A
Protection Category
RTII
Coil Resistance
4347 Ω
Contact Rating
16 A
Insulation Creepage
.315 in
Contact Limiting Continuous Current
16 A
Switching Current
100mA @ 5V
Contact Rating (AC)
16 A @ 250V
Base Shape
Square
Number of Pins
4
