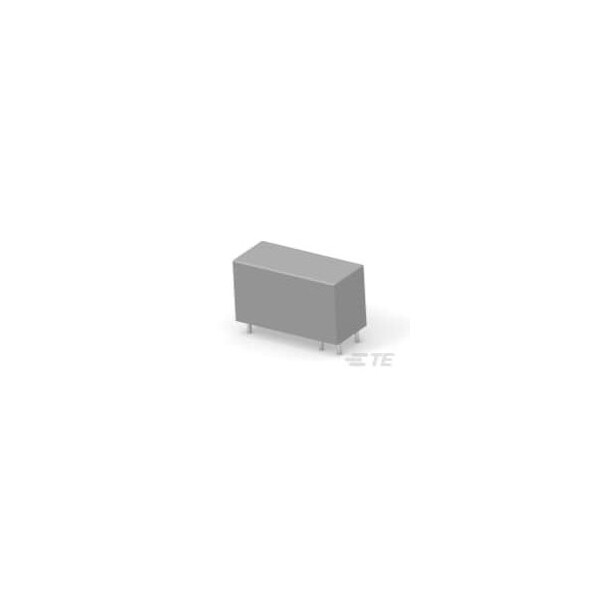

Te Connectivity PCB, Power Relay, 26 A, PCB 9-1415006-1 - main

PCB, Power Relay, 26 A, PCB

  • Mfr # 9-1415006-1

  • Zoro # G501026575

product price:  $4.95
/ea
Sold in multiples of 20 for $99.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9-1415006-1
Zoro #
G501026575
UPC #
-
Country of Origin
Mexico

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
Features
UL Coil Insulation Class F
Number of Poles
1
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Contact Limiting Making Current
30 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Continuous Current
26 A
Protection Category
RTII
Coil Type
Monostable, DC
Insulation Clearance
.394 in
Operating Temp. Range
85 to 105°C
Switching Voltage
400 VAC
Insulation Creepage
.394 in
Contact Voltage Rating
250 VAC
Contact Limiting Short-Time Current
16 A
Contact Limiting Breaking Current
16 A
Coil Resistance
360 Ω
Contact Rating
16 A
Number of Pins
6
Contact Form
SPST-NO
