Shop TE CONNECTIVITY

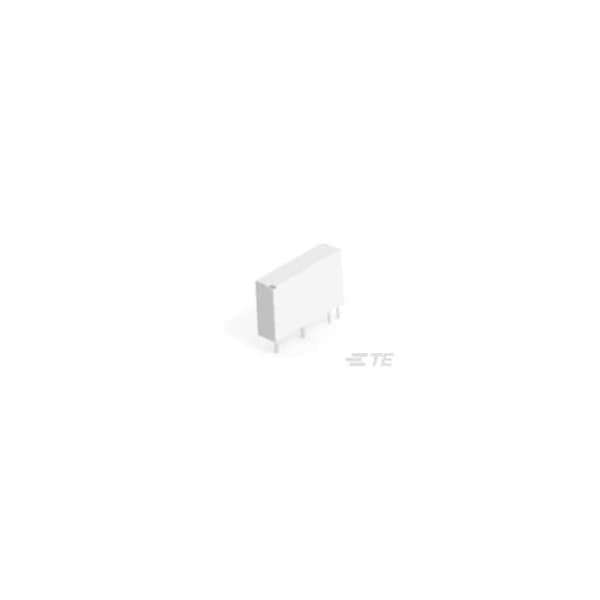

PCB, Power Relay, 3 A, PCB

  • Mfr # 3-1461491-0

  • Zoro # G001016816

product price:
$
6.49
/ea
Sold in multiples of 25 for $162.25

Key Features

Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
5V DC
Current Rating
3 A
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1461491-0
Zoro #
G001016816
UPC #
-
Country of Origin
China

Details

Item
Power Relay
Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
5V DC
Current Rating
3 A
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
Number of Poles
1
Contact Material
AgNi
Power Consumption - Relay
120 mW
Features
UL Coil Insulation Class F; Bifurcated/Twin Contacts
Contact Voltage Rating
30 VDC, 250 VAC
Contact Limiting Continuous Current
3A
Coil Resistance
208 Ω
Insulation Creepage
.138 in
Contact Rating
0.125A
Operating Temp. Range
70 to 85°C
Dielectric Voltage
3000 Vrms Coil and Contact; 750 Vrms Open Contacts
Protection Category
RTIII
Coil Type
Monostable, DC
Contact Limiting Breaking Current
3A
Insulation Clearance
.138 in
Contact Limiting Making Current
3A
Switching Voltage
277 VAC, 125 VDC
Contact Rating (AC)
3 A @ 250V, 5 A @ 250V
Base Shape
Square
Contact Form
SPST-NO
