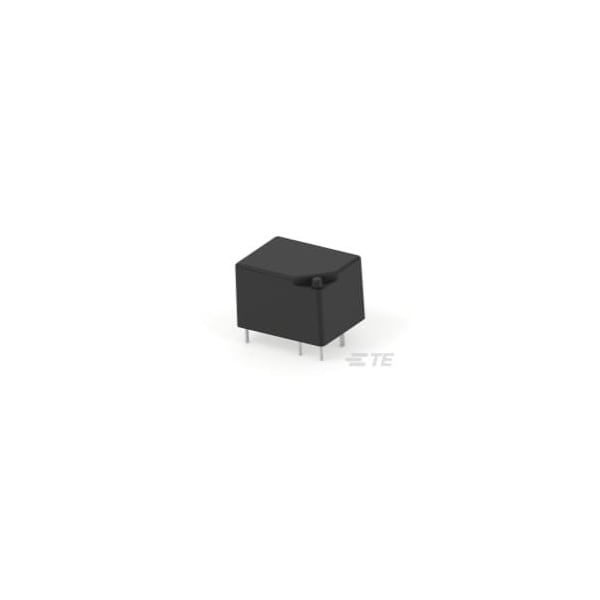

Te Connectivity PCB, Power Relay, 7 A, PCB 2-1393203-1 - main

PCB, Power Relay, 7 A, PCB

  • Mfr # 2-1393203-1

  • Zoro # G101033560

product price:  $6.35
/ea
Sold in multiples of 25 for $158.75

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
5A
Features
Sensitive Version
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1393203-1
Zoro #
G101033560
UPC #
-
Country of Origin
Slovenia

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
5A
Features
Sensitive Version
Contact Material
AgNi90/10
Power Consumption - Relay
327 mW
Number of Poles
1
Contact Rating
0.291666666666667A
Contact Limiting Short-Time Current
7A
Switching Voltage
400 VAC
Operating Temp. Range
50 to 70°C
Contact Voltage Rating
250 VAC
Contact Limiting Continuous Current
7A
Coil Resistance
440 Ω
Contact Limiting Making Current
12A
Protection Category
RTIII
Contact Limiting Breaking Current
7A
Insulation Creepage
.098 in
Insulation Clearance
.098 in
Dielectric Voltage
2000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Type
Monostable, DC
Contact Rating (AC)
5 A @ 250V
Number of Pins
5
Base Shape
Square
Contact Form
SPDT

Description
