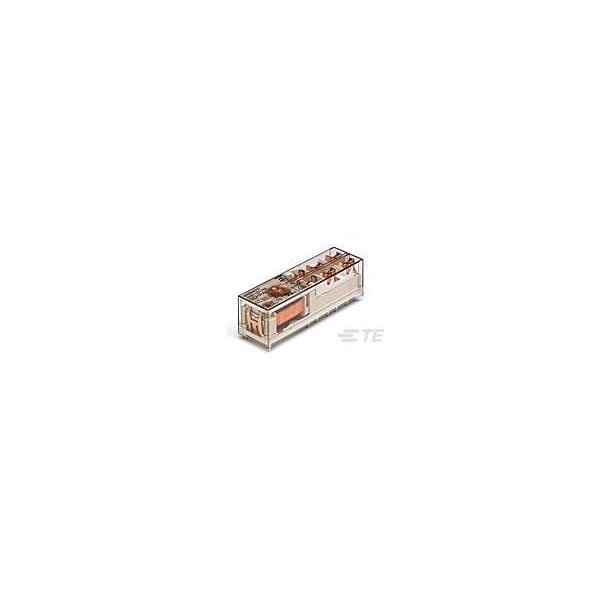

PCB, Power Relay, 8 A, 6 Pins, PCB

Name: PCB, Power Relay, 8 A, 6 Pins, PCB
Brand: Te Connectivity
SKU: G805865993
Price: 177.90 USD
Availability: InStock

$29.65

/ea

Sold in multiples of 6 for $177.90

Mounting Style

PCB

Electrical Connection

Pins

Number of Pins

Coil Voltage

18V DC

Current Rating

8 A

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Force-Guided Relay
Mounting Style: PCB
Electrical Connection: Pins
Number of Pins: 6
Coil Voltage: 18V DC
Current Rating: 8 A
Features: Force Guided Contacts
Power Consumption - Relay: 1200 mW
Number of Poles: 6
Contact Material: AgSnO2
Coil Resistance: 270 Ω
Insulation Clearance: .217 in
Insulation Creepage: .217 in
Contact Limiting Making Current: 8A
Switching Voltage: 400 VAC
Dielectric Voltage: 3000 Vrms Adjacent Contacts; 4000 Vrms Coil and Contact; 1500 Vrms Open Contacts
Contact Limiting Continuous Current: 8A
Contact Voltage Rating: 250 VAC
Contact Limiting Short-Time Current: 8A
Operating Temp. Range: -25 to 70°C
Coil Type: Monostable, DC
Switching Current: 10mA @ 5V
Protection Category: RTIII
Contact Limiting Breaking Current: 8A
Contact Rating: 0.333333333333333A
Contact Rating (AC): 8 A @ 250V
Contact Form: 5A (NO) + 1B (NC)

Power/Signal Relay, 3 Form A,B, 6Pst, Momentary, 0.067A (Coil), 18Vdc (Coil), 1200Mw (Coil), 8A (Contact), Dc Input, Random, Ac Output, Panel Mount
