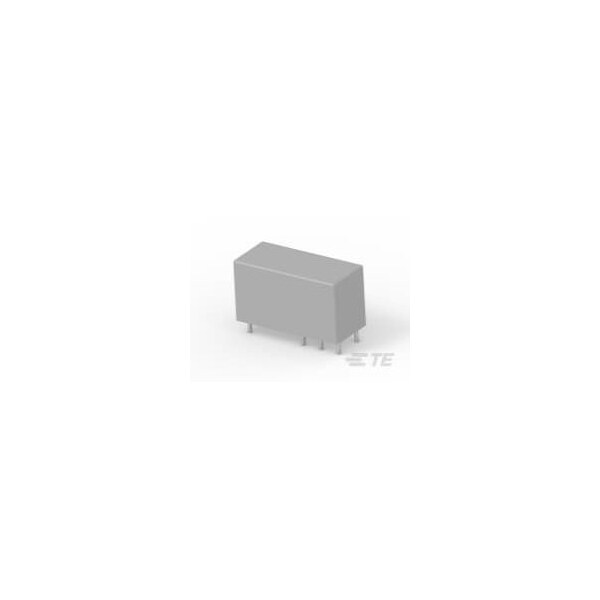

Te Connectivity PCB, Socket, PCB Relay, 16 A, PCB, Plug-in 8-1415535-6 - main

PCB, Socket, PCB Relay, 16 A, PCB, Plug-in

  • Mfr # 8-1415535-6

  • Zoro # G101018420

product price:  $3.25
/ea
Sold in multiples of 40 for $130.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
12V DC
Current Rating
16 A
Power Consumption - Relay
400 mW
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
8-1415535-6
Zoro #
G101018420
UPC #
-
Country of Origin
Austria

Details

Item
PCB Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
12V DC
Current Rating
16 A
Power Consumption - Relay
400 mW
Number of Poles
1
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Contact Limiting Breaking Current
16A
Contact Voltage Rating
250V AC
Operating Temp. Range
70 to 85°C
Contact Rating
16A
Protection Category
RTII
Insulation Creepage
10 mm [ .394 in ]
Contact Limiting Short-Time Current
16A
Insulation Clearance
10 mm [ .394 in ]
Coil Resistance
360 Ω
Contact Limiting Making Current
30A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Voltage
400V AC
Contact Limiting Continuous Current
16A
Coil Type
Monostable, DC
Contact Rating (AC)
16 A @ 250V
Contact Form
1 Form C (CO)
Number of Pins
8
