Shop TE CONNECTIVITY

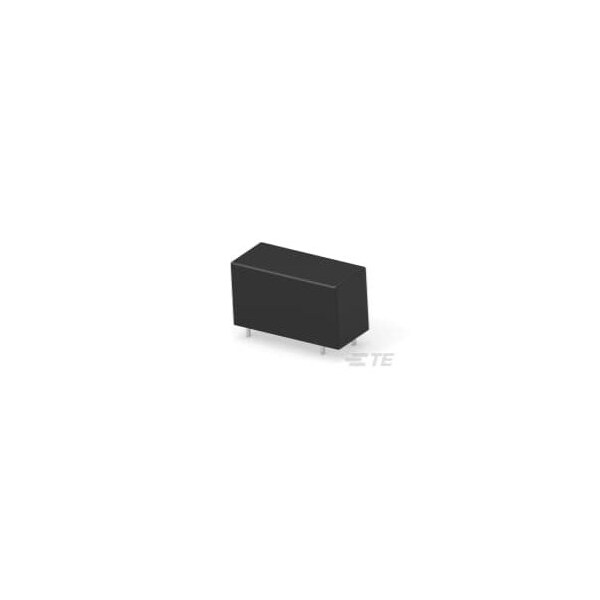

PCB, Socket, Power Relay, 12 A, 1, PCB, Plug-in

  • Mfr # 2-1393242-1
  • Zoro # G801018256
product price:
$
5.45
/ea
Sold in multiples of 20 for $109.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Number of Pins
6
Coil Voltage
24V DC
Current Rating
12 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2-1393242-1
Zoro #
G801018256
UPC #
-
Country of Origin
Austria
Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Number of Pins
6
Coil Voltage
24V DC
Current Rating
12 A
Contact Material
AgNi90/10
Power Consumption - Relay
400 mW
Number of Poles
1
Features
UL Coil Insulation Class F
Contact Limiting Breaking Current
12A
Contact Rating
0A
Switching Voltage
400 VAC
Coil Type
Monostable, DC
Contact Limiting Continuous Current
12A
Contact Voltage Rating
250 VAC
Operating Temp. Range
85°C
Insulation Creepage
.394 in
Insulation Clearance
.394 in
Coil Resistance
1440 Ω
Contact Limiting Making Current
25 A
Protection Category
RTII
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Form
SPST-NO
Base Shape
Square
Contact Rating (AC)
12 A @ 250V
