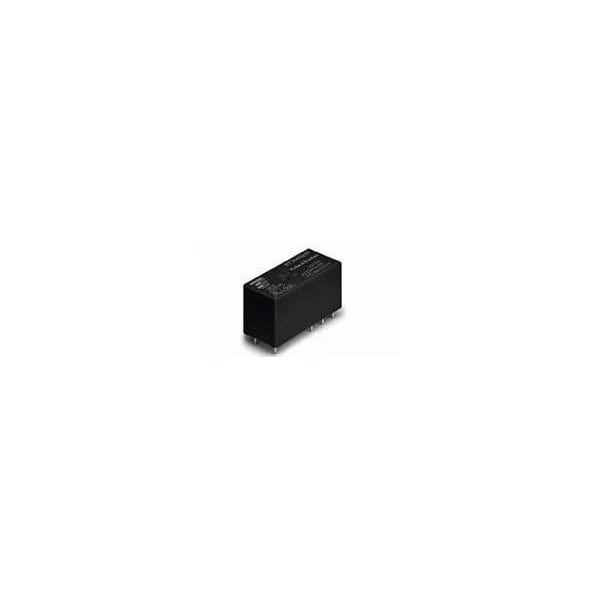

Te Connectivity PCB, Socket, Power Relay, 16 A, PCB, Plug-in 2-1419108-9 - main

PCB, Socket, Power Relay, 16 A, PCB, Plug-in

  • Mfr # 2-1419108-9

  • Zoro # G101026647

product price:  $4.75
/ea
Sold in multiples of 20 for $95.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1419108-9
Zoro #
G101026647
UPC #
-
Country of Origin
China

Details

Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Number of Poles
1
Operating Temp. Range
85°C
Contact Rating
16 A
Contact Limiting Continuous Current
16 A
Coil Type
Monostable, DC
Contact Limiting Making Current
30 A
Protection Category
RTIII
Insulation Clearance
.394 in
Coil Resistance
360 Ω
Insulation Creepage
.394 in
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Breaking Current
16 A
Switching Voltage
400 VAC
Contact Voltage Rating
250 VAC
Contact Form
SPDT
Base Shape
Square
Number of Pins
8
