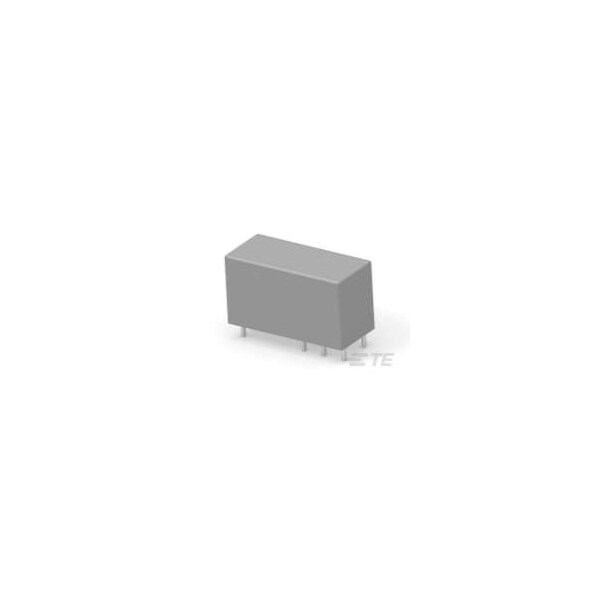

Te Connectivity PCB, Socket, Power Relay, 8 A, 2 Pins, PCB, Plug-in 6-1393243-8 - main

PCB, Socket, Power Relay, 8 A, 2 Pins, PCB, Plug-in

  • Mfr # 6-1393243-8

  • Zoro # G501017801

product price:  $2.99
/ea
Sold in multiples of 40 for $119.60

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Number of Pins
2
Coil Voltage
24V DC
Current Rating
8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6-1393243-8
Zoro #
G501017801
UPC #
-
Country of Origin
Austria

Details

Item
Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Number of Pins
2
Coil Voltage
24V DC
Current Rating
8 A
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Number of Poles
2
Contact Voltage Rating
250 VAC
Protection Category
RTII
Coil Type
Monostable, DC
Insulation Creepage
.394 in
Switching Voltage
400 VAC
Contact Rating
0.333333333333333A
Contact Limiting Continuous Current
8A
Coil Resistance
1440 Ω
Contact Limiting Making Current
15 A
Insulation Clearance
.394 in
Operating Temp. Range
85°C
Contact Limiting Breaking Current
8A
Dielectric Voltage
2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Form
DPDT-CO
Contact Rating (AC)
8 A @ 250V
