Product Information
MFR #
1461193-9
Zoro #
G501017238
UPC #
-
Country of Origin
China
Details

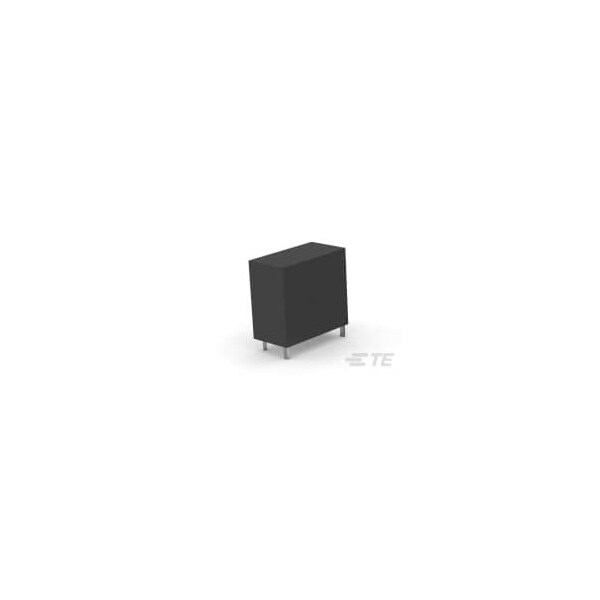

Item - Relay
Standard Power Relay
Coil Volts
24V DC
Contact Form - Relay
1 Form A (NO)
Power Consumption - Relay
900 mW
Contact Material
AgSnO
Number of Poles
1
Protection Category
RTII
Coil Type
Monostable, DC
Contact Limiting Breaking Current
25 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Current
100mA @ 1V
Contact Limiting Making Current
25 A
Contact Limiting Continuous Current
25 A
Contact Voltage Rating
24 VDC, 277 VAC
Insulation Creepage
.315 in
Insulation Clearance
.264 in
Contact Rating
25 A
Mounting Type
Printed Circuit Board
Coil Resistance
640 Ω
Contact Limiting Short-Time Current
25 A
Terminal Type
PCB-THT
Operating Temp. Range
50 to 70°C
