Product Information
MFR #
3-1461491-5
Zoro #
G601016896
UPC #
-
Country of Origin
China
Details
Item

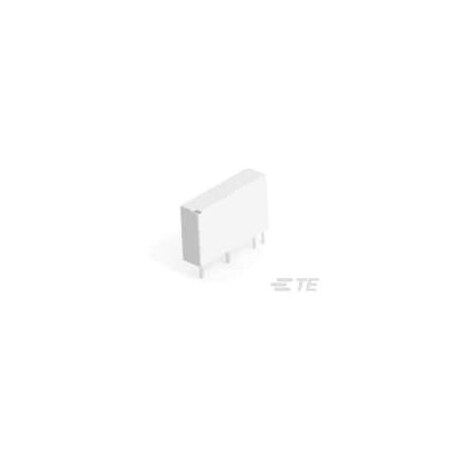

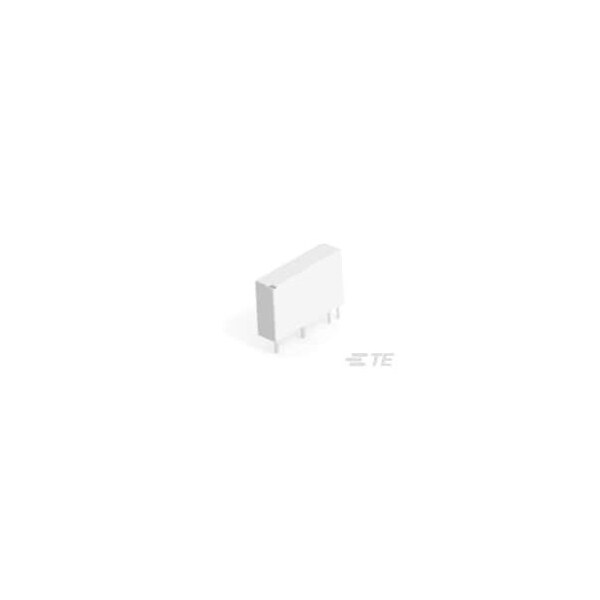

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
24V DC
Contact Form
1 Form A (NO)
Power Consumption - Relay
120 mW
Contact Material
AgNi
Features
UL Coil Insulation Class F; Bifurcated/Twin Contacts
Number of Poles
1
Insulation Clearance
.138 in
Contact Rating
0.125A
Insulation Creepage
.138 in
Contact Limiting Continuous Current
3A
Coil Resistance
4602 Ω
Contact Limiting Making Current
3A
Protection Category
RTIII
Operating Temp. Range
70 to 85°C
Contact Voltage Rating
30 VDC, 250 VAC
Switching Voltage
277 VAC, 125 VDC
Coil Type
Monostable, DC
Dielectric Voltage
3000 Vrms Coil and Contact; 750 Vrms Open Contacts
Contact Limiting Breaking Current
3A
