Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1461491-6
Zoro #
G501017061
UPC #
-
Country of Origin
China
Details
Item

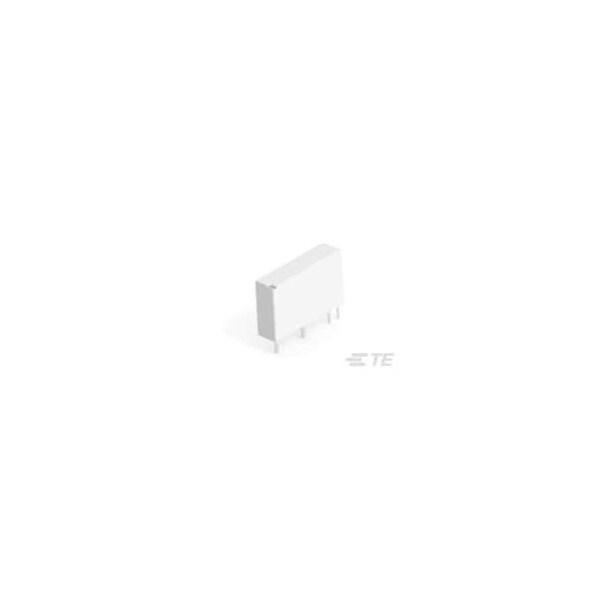

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
24V DC
Contact Form
1 Form A (NO)
Number of Poles
1
Contact Material
AgNi
Features
UL Coil Insulation Class F; Bifurcated/Twin Contacts
Power Consumption - Relay
120 mW
Dielectric Voltage
3000 Vrms Coil and Contact; 750 Vrms Open Contacts
Coil Type
Monostable, DC
Contact Limiting Making Current
3A
Switching Voltage
125 VDC, 277 VAC
Contact Rating
0.125A
Contact Limiting Breaking Current
3A
Operating Temp. Range
70 to 85°C
Insulation Clearance
.138 in
Coil Resistance
4800 Ω
Contact Voltage Rating
30 VDC, 250 VAC
Protection Category
RTIII
Contact Limiting Continuous Current
3A
Insulation Creepage
.138 in
