Contact our U.S. based teamSpecifications
Product Information
MFR #
1393219-8
Zoro #
G501016972
UPC #
-
Country of Origin
Mexico
Details
Item

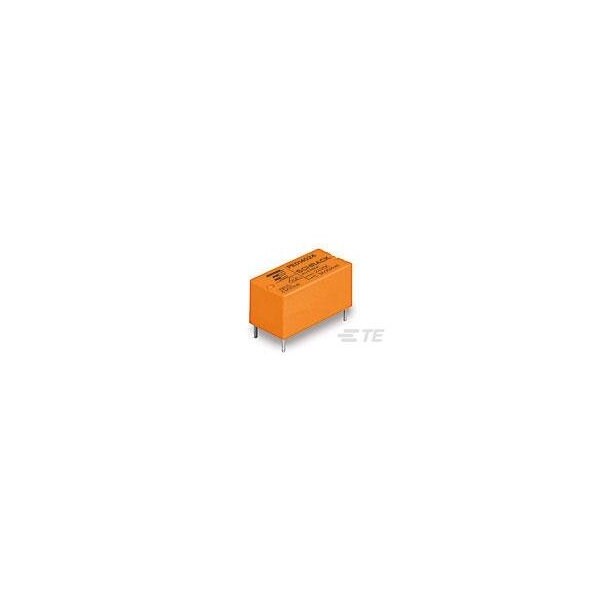

PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
18V DC
Contact Form
1 Form C (CO)
Contact Material
AgNi90/10
Power Consumption - Relay
210 mW
Number of Poles
1
Contact Limiting Making Current
5A
Coil Type
Monostable, DC
Contact Limiting Continuous Current
5A
Coil Resistance
1545 Ω
Contact Rating
5A
Insulation Creepage
4 mm [ .157 in ]
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Voltage
400V AC
Insulation Clearance
3.2 mm [ .126 in ]
Contact Limiting Short-Time Current
5A
Contact Limiting Breaking Current
5A
Protection Category
RTII
Operating Temp. Range
70 to 85°C
Contact Voltage Rating
250V AC
