Shop TE CONNECTIVITY
See all product information
Create Account

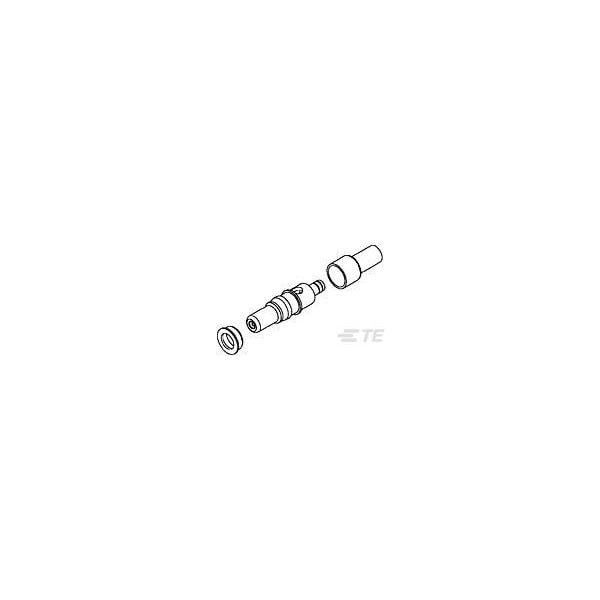

PIN STRAIGHT SIZE 8 AMPLIMITE
Mfr # 5-228618-2
Zoro # G501026810
product price:Â
$
37.39
/ea
Sold in multiples of 3 for $112.17
Key Features
Contact Type
Pin
Contact Mating Area Plating Thickness
30 to 55 µin
Mating Contact Retention
Without
Impedance Options
Non-Matched
Dielectric Material
PTFE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5-228618-2
- Zoro #
- G501026810
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Mating Area Plating Thickness
- 30 to 55 µin
- Outer Shell Plating Thickness
- 30 µin
- Contact Size
- 8
Details
- Contact Type
- Pin
- Mating Contact Retention
- Without
- Impedance Options
- Non-Matched
- Dielectric Material
- PTFE
- Ferrule Material
- Brass
- Product Type
- Contact
- Center Contact Material
- Beryllium Copper
- Connector & Contact Terminates To
- Wire & Cable
- Cable Type
- RG 187, RG 179A, RG 187A, RG 179B, RG 179
- Ferrule Plating Material
- Tin
- Center Contact Plating Material
- Gold
- Connector Type
- Coaxial Contacts
- Body Style
- Straight
