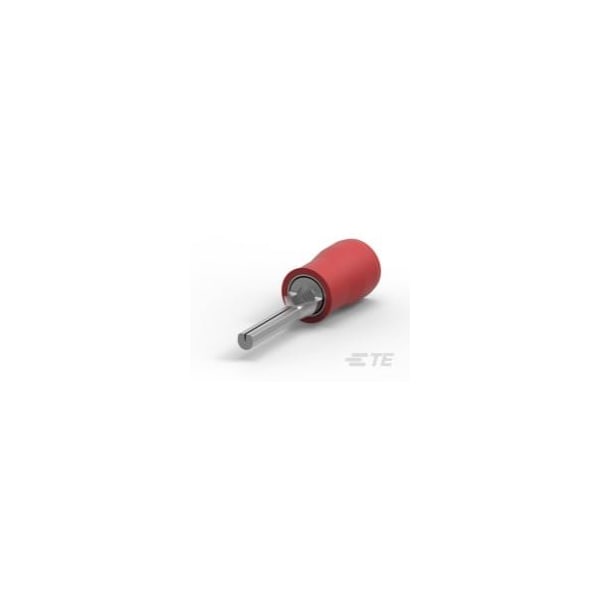

Pin Terminal, 1.42 mm, Nylon Insulated, Red
- Mfr # 165142
- Zoro # G300974626
product price:Â
$
0.87
/ea
Sold in multiples of 143 for
$124.41
Key Features
Insulation Color
Red
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Insulation Type
Nylon
Features
Wire Insulation Support
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 165142
- Zoro #
- G300974626
- UPC #
- -
- Country of Origin
- Mexico
- Item
- Pin Terminal
- Insulation Color
- Red
- Insulation Type
- Nylon
- Features
- Wire Insulation Support
- Wire Type
- Regular Wire
- Seam
- Closed Barrel
- Contact Plating Material
- Copper, Tin
- Terminal Orientation
- Straight
- Insulation Dia
- 0.14 in
- Termination Style
- Crimp
- Minimum Operating Temperature
- -40 Degrees C
- Insulation Coverage
- Partial Coverage
- Terminal Shape
- Pin
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Standards
- UL & CSA Listed
- Contact Material
- Copper
Dimensions
- Maximum Wire Size
- 16 AWG
- Minimum Wire Size
- 22 AWG
- Overall Length
- 0.8 in
- Pin Length
- 0.26 in
- Stud Size
- 0.07 in
