Contact our U.S. based teamSpecifications

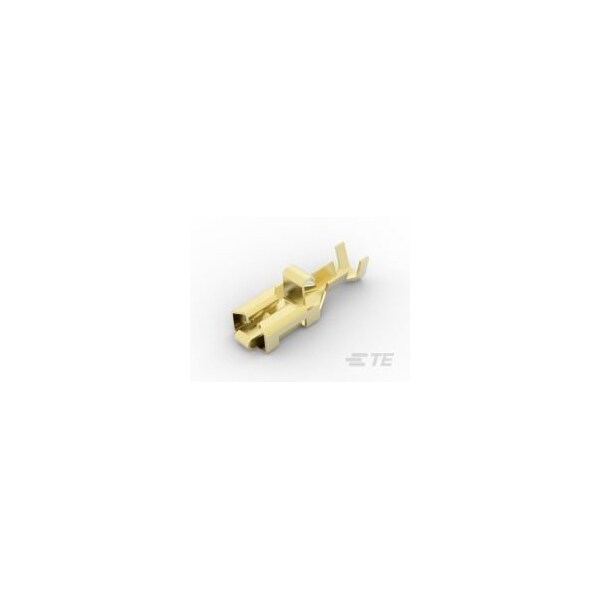

Product Information
MFR #
170233-1
Zoro #
G401025494
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Wire Size
20 - 14 AWG
Overall Length
.87 in
Accepts Wire Insulation Diameter Range
.082 - .134 in
Receptacle Stock Thickness
.016 in
Wire Insulation Diameter (Max)
.134 in
Mating Tab Thickness
.032 in
Mating Tab Width
.25 in
Details
Terminal Type
Receptacle
Wire Insulation Support
With
Fully Insulated
No
Discrete Wire Type
Stranded
Terminates To
Wire & Cable
Barrel Type
Open
Insertion Force
Low
Crimp Type
F-Crimp
Mating Retention Type
Dimple
UL Rating
Recognized
Terminal & Splice Style
Receptacle
Contact Base Material
Brass
Plating Material
Unplated
Operating Temperature Range
-40 130 °C
Wire/Cable Type
Discrete Wire
Terminal Orientation
Straight
