  11. PLUG ASSY STR SMB

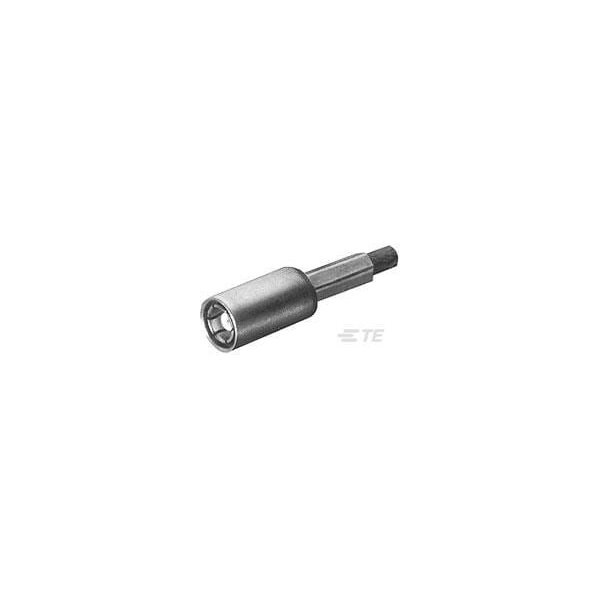

Te Connectivity PLUG ASSY STR SMB 413985-8 - main

PLUG ASSY STR SMB

  • Mfr # 413985-8

  • Zoro # G000945919

product price: $11.69
/ea
Sold in multiples of 9 for $105.21

Key Features

Impedance
50 Ω
Termination Method to Wire & Cable
Crimp
Number of Coaxial Contacts
1
Operating Temperature Range
-65 -165 °C
Body Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
413985-8
Zoro #
G000945919
UPC #
-
Country of Origin
Mexico

Dimensions

RF Connector Mated Outer Diameter (Approximate)
.187 in

Details

Impedance
50 Ω
Termination Method to Wire & Cable
Crimp
Number of Coaxial Contacts
1
Operating Temperature Range
-65 -165 °C
Body Material
Brass
Body Plating Material
Nickel over Copper
Connector System
Cable-to-Cable
RF Contact Captivation Method
Mechanical
Cable Connector Orientation
Straight
Connector Mounting Type
Cable Mount
RF Connector Coupling Mechanism
Snap-Fit
Detent
Without
Connector Interface
SMB
Cable Type
RG 188 Double Shield, RG 174 Double Shield, RG 316 Double Shield
Center Contact Plating Material
Gold over Nickel
Additional Features
Solderless
Dielectric Material
PTFE
Connector Product Type
Connector Assembly
Body Shape
Circular
Outer Contact Plating Material
Nickel (Ni)
Number of Positions
1
Connector & Contact Terminates To
Wire & Cable
Operating Frequency
4 GHz
Grade
Consumer
Connector Style
Plug
Center Contact Material
Beryllium Copper
Port Configuration
Single Port
