Shop TE CONNECTIVITY

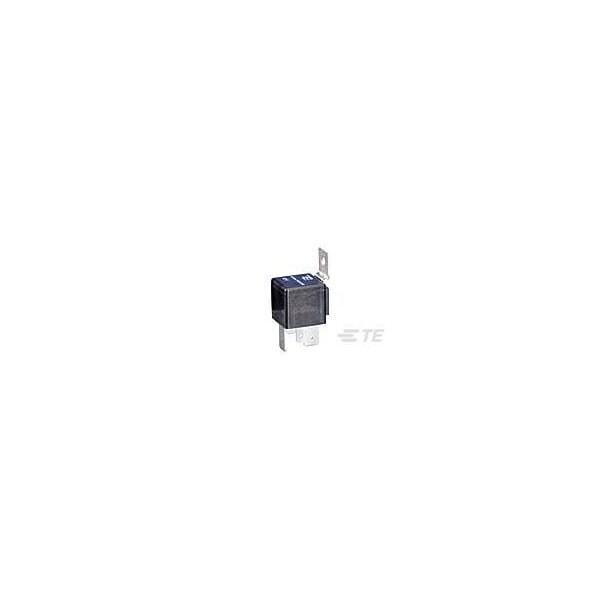

Plug-In, Power Relay, 70 A, Plug-in, Quick Connect

  • Mfr # 1-1414469-0
  • Zoro # G605866084
product price:
$
15.95
/ea
Sold in multiples of 7 for $111.65

Key Features

Mounting Style
Socket
Electrical Connection
Plug In, Quick Connect
Coil Voltage
12V DC
Current Rating
70 A
Power Consumption - Relay
2100 mW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1414469-0
Zoro #
G605866084
UPC #
-
Country of Origin
Portugal

Details

Item
Power Relay
Mounting Style
Socket
Electrical Connection
Plug In, Quick Connect
Coil Voltage
12V DC
Current Rating
70 A
Power Consumption - Relay
2100 mW
Contact Material
Ag Alloy
Dielectric Voltage
500 Vrms Coil and Contact; 500 Vrms Open Contacts
Coil Type
Monostable, DC
Coil Resistance
90 Ω
Protection Category
RTI
Contact Limiting Short-Time Current
300 A
Contact Limiting Continuous Current
70 A
Contact Limiting Making Current
240 A
Contact Limiting Breaking Current
70 A
Operating Temp. Range
105 to 125°C
Contact Rating
70 A
Switching Current
1000mA @ 5VDC
Contact Form
SPST-NO
Contact Rating (DC)
70 A @ 12V

Description

Power/Signal Relay, 1 Form A, Spst, Momentary, 0.15A (Coil), 12Vdc (Coil), 2100Mw (Coil), 70A (Contact), 24Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount
