Product Information
MFR #

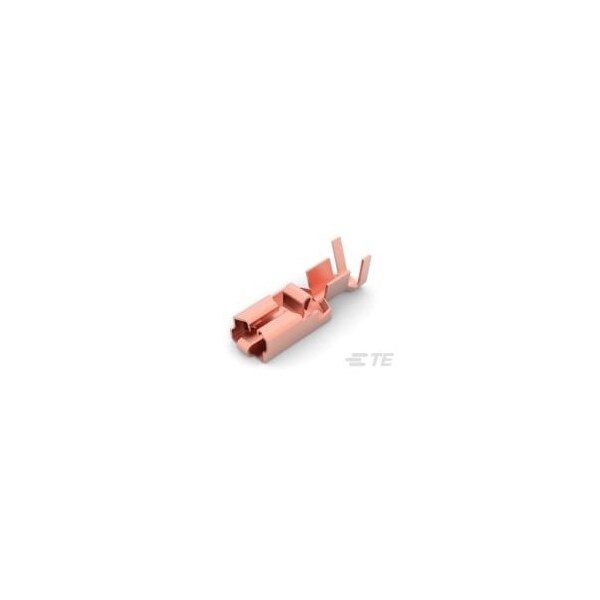

928958-2
Zoro #
G301052873
UPC #
-
Country of Origin
Italy
Dimensions
Wire Size
13 - 11 AWG
Overall Length
.88 in
Mating Tab Thickness
.032 in
Receptacle Stock Thickness
.016 in
Mating Tab Width
.25 in
Accepts Wire Insulation Diameter Range
.13 - .185 in
Wire Insulation Diameter (Max)
.185 in
Details
Terminal Type
Receptacle
Fully Insulated
No
Wire/Cable Type
Discrete Wire
Terminates To
Wire & Cable
Crimp Type
F-Crimp
Terminal Orientation
Straight
UL Rating
Recognized
Insertion Force
Low
Terminal & Splice Style
Receptacle
Mating Retention Type
Dimple
Barrel Type
Open
Plating Material
Unplated
Wire Insulation Support
With
Discrete Wire Type
Stranded
Contact Base Material
Phosphor Bronze
