This item is Discontinued.

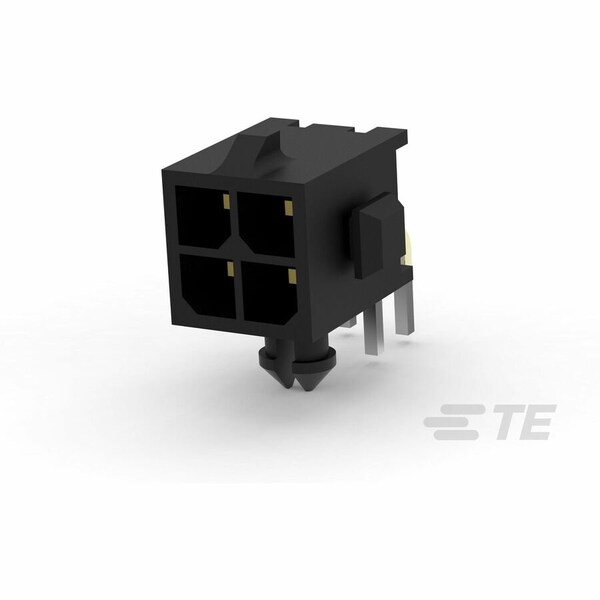

Te Connectivity Power Connector, 4 Contact(S), Male, Solder Terminal, Plug 3-794620-4

Power Connector, 4 Contact(S), Male, Solder Terminal, Plug (Discontinued)

  • Mfr # 3-794620-4
  • Zoro # G005980748
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-794620-4
Zoro #
G005980748
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Max. Single Wire Size
20 AWG
Max. Insulation Dia.
1.52 mm
Contact Plating Thickness
0.76 µm
Maximum Single Wire Size
20 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Header
Type
Pin
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Nylon
Max. Temp.
105°C
Hole Center to Center
3 mm
Current Rating
5 A
Contact Finish
Gold Plated
Terminal Type
Through Hole - Solder
Number of Rows
2
For Use With
Plug Housing
Number of Contacts
4
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Tin Plated
Termination Style
Through Hole - Solder
