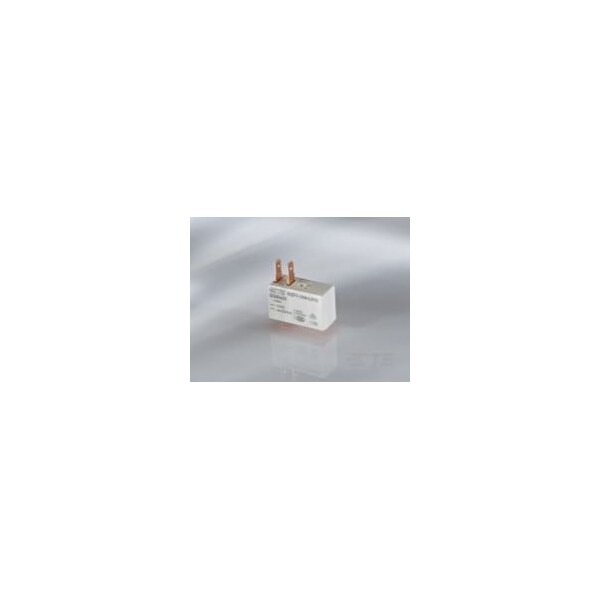

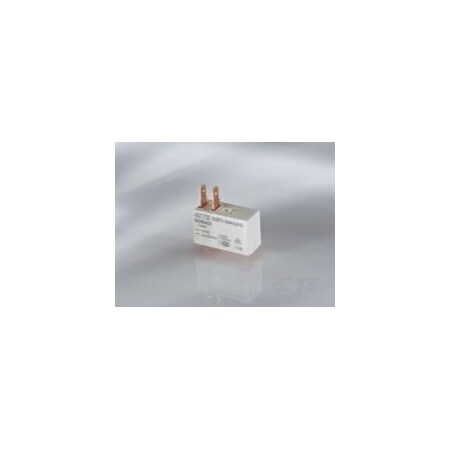

Power/Signal Relay, 1 Form A, Spst-No, 18Vdc (Coil), 530Mw (Coil), 16A (Contact), Panel Mount (Discontinued)
- Mfr # 1833011-5
- Zoro # G205866170
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
1833011-5
Zoro #
G205866170
UPC #
-
Country of Origin
China
Details
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Coil Volts
18V DC
Power Consumption - Relay
530 mW
Contact Form - Relay
1 Form A SPST-NO
Item - Relay
Standard Power Relay
Number of Poles
1
Coil Resistance
611 Ω
Insulation Clearance
5 to 8 mm
Switching Current
100mA @ 5V
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Mounting Type
Printed Circuit Board
Terminal Type
PCB-THT
Contact Voltage Rating
250 VAC
Operating Temp. Range
-40 to 85°C
Contact Limiting Continuous Current
16 A
Protection Category
RTII
Contact Rating
16 A
Insulation Creepage
.315 in
Coil Type
Monostable, DC
Contact Limiting Making Current
16 A
Switching Voltage
400 VAC
