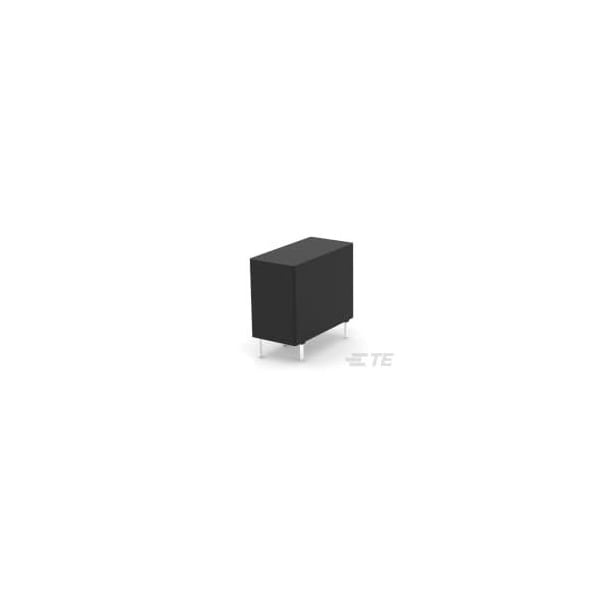

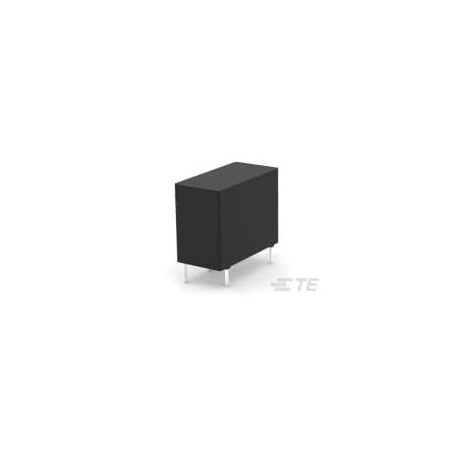

Power/Signal Relay, 1 Form C, Spdt, Momentary, 0.033A (Coil), 12Vdc (Coil), 400Mw (Coil), 5A (Discontinued)
- Mfr # 9-1440003-3
- Zoro # G005866370
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9-1440003-3
Zoro #
G005866370
UPC #
-
Country of Origin
China
Details
Item
Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
12V DC
Contact Form
1 Form C (CO)
Features
UL Coil Insulation Class F
Contact Material
AgSnO
Power Consumption - Relay
400 mW
Number of Poles
1
Insulation Creepage
3 to 5.5 mm
Contact Limiting Breaking Current
5A
Contact Limiting Short-Time Current
5A
Operating Temp. Range
50 to 70°C
Contact Limiting Making Current
5A
Switching Voltage
277 VAC, 30 VDC
Contact Limiting Continuous Current
5A
Coil Type
Monostable, DC
Coil Resistance
360 Ω
Contact Rating
0.208333333333333A
Insulation Clearance
0 to 2.5 mm
Dielectric Voltage
4000 Vrms Coil and Contact; 750 Vrms Open Contacts
Contact Voltage Rating
277 VAC, 30 VDC
Switching Current
100mA @ 5V
Protection Category
RTIII
Description
Power/Signal Relay, 1 Form C, Spdt, Momentary, 0.033A (Coil), 12Vdc (Coil), 400Mw (Coil), 5A (Contact), 30Vdc (Contact), Dc Input, Random, Ac/Dc Output, Panel Mount
