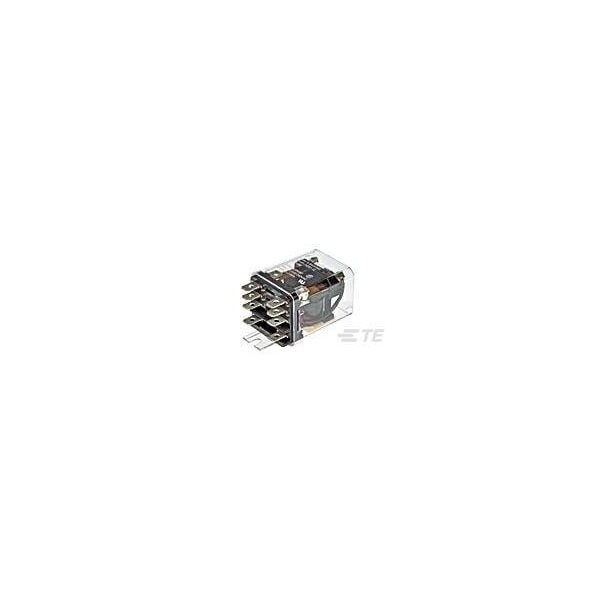

Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.1A (Coil), 12Vdc (Coil), 1200Mw (Coil), 20A (Discontinued)
- Mfr # 7-1393114-7
- Zoro # G905865954
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7-1393114-7
Zoro #
G905865954
UPC #
-
Country of Origin
China
Details
Item
Power Relay
Mounting Style
Bracket, Panel Mount
Electrical Connection
Solder, Quick Connect
Coil Voltage
12V DC
Contact Form
2 Form C (CO)
Contact Material
AgCdO
Number of Poles
2
Power Consumption - Relay
1200 mW
Features
UL Coil Insulation Class B
Contact Rating
20 A
Switching Current
300mA @ 12V
Contact Limiting Making Current
20 A
Operating Temp. Range
-45 to 70°C
Coil Resistance
120 Ω
Protection Category
RTI
Contact Limiting Continuous Current
20 A
Dielectric Voltage
3750 Vrms Adjacent Contacts; 3750 V Coil and Contact; 1200 Vrms Open Contacts
Contact Limiting Short-Time Current
20 A
Contact Voltage Rating
240 VAC
Contact Limiting Breaking Current
20 A
Coil Type
Monostable, DC
Description
Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.1A (Coil), 12Vdc (Coil), 1200Mw (Coil), 20A (Contact), 28Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount
