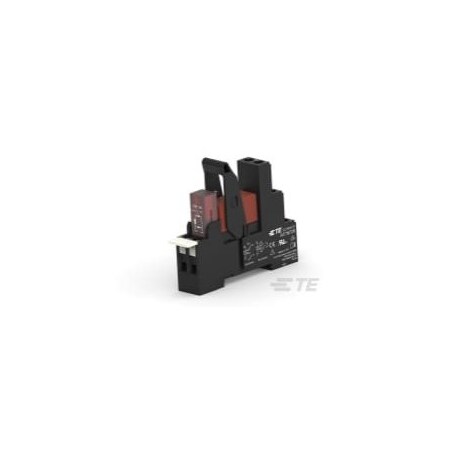

Power/Signal Relay, 2 Form C, Dpdt, Momentary, 740Mw (Coil), 8A (Contact), Ac Input, Ac Output, (Discontinued)
- Mfr # 3-1415073-1
- Zoro # G405866093
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
3-1415073-1
Zoro #
G405866093
UPC #
-
Country of Origin
Austria
Details
Item
Power Relay
Mounting Style
DIN Rail
Electrical Connection
Screw Terminals
Coil Voltage
230V AC
Contact Form
2 Form C (CO)
Contact Material
AgNi90/10
Power Consumption - Relay
1VA
Number of Poles
2
Features
Electrical Indicator, LED
Item - Relay
Relay Package RT
Contact Limiting Continuous Current
8A
Contact Rating
8A
Switching Voltage
400V AC
Contact Limiting Making Current
15A
Contact Limiting Short-Time Current
8A
Operating Temp. Range
50 to 70°C
Protection Category
RTI
Insulation Creepage
10 mm [ .394 in ]
Insulation Clearance
10 mm [ .394 in ]
Coil Resistance
32500 Ω
Coil Type
Monostable, AC
Contact Voltage Rating
240V AC
Dielectric Voltage
2500 Vrms Adjacent Contacts; 1000 Vrms Coil and Contact; 5000 Vrms Open Contacts
Contact Limiting Breaking Current
8A
Description
Power/Signal Relay, 2 Form C, Dpdt, Momentary, 740Mw (Coil), 8A (Contact), Ac Input, Ac Output, Panel Mount
