Product Information
MFR #
9-1415074-1
Zoro #
G201026646
UPC #
-
Country of Origin
Austria
Details
Item

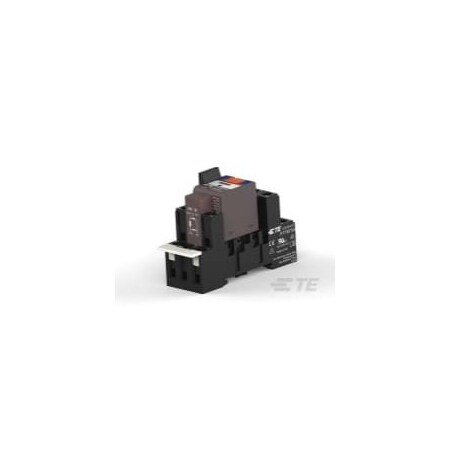

Power Relay
Mounting Style
DIN Rail
Electrical Connection
Screw Terminals
Coil Voltage
24V AC
Contact Form
3 Form C (CO)
Number of Poles
3
Contact Material
AgNi90/10
Power Consumption - Relay
1VA
Item - Relay
Relay Package PT
Features
Manual Operation; Electrical Indicator, LED
Contact Voltage Rating
240V AC
Contact Limiting Continuous Current
10A
Coil Type
Monostable, AC
Insulation Clearance
4 mm [ .157 in ]
Operating Temp. Range
50 to 70°C
Switching Voltage
400V AC
Insulation Creepage
4 mm [ .157 in ]
Coil Resistance
192 Ω
Contact Rating
10A
Dielectric Voltage
2500 Vrms Adjacent Contacts; 1200 Vrms Coil and Contact; 2500 Vrms Open Contacts
Contact Limiting Making Current
20A
Protection Category
RTI
Contact Limiting Breaking Current
10A
Contact Limiting Short-Time Current
10A
