Contact our U.S. based teamSpecifications
Product Information
MFR #
9-1419111-6
Zoro #
G801026657
UPC #
-
Country of Origin
Mexico
Dimensions
Dimensions
1.102 x 0.886 x 1.181 in
Details
Item

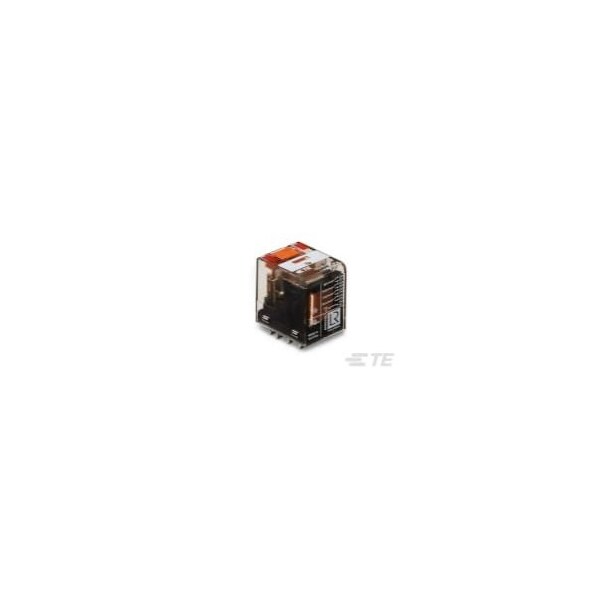

General Purpose Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
24V AC
Contact Form
4 Form C (4 CO)
Power Consumption - Relay
1VA, 0.79VA
Features
UL Coil Insulation Class F
Number of Poles
4
Contact Material
AgNi90/10
Contact Rating
0.25A
Coil Type
Monostable, AC
Dielectric Voltage
2500 Vrms Adjacent Contacts; 1200 Vrms, 2000 V Coil and Contact; 1200 Vrms Open Contacts
Insulation Clearance
3 mm
Contact Voltage Rating
240 VAC
Insulation Creepage
.157 in
Operating Temp. Range
-40 to 70°C
Coil Resistance
192 Ω
Contact Limiting Making Current
12A
Switching Voltage
240 VAC
Protection Category
RTII
Contact Limiting Breaking Current
6A
Switching Current
10mA @ 12V
Contact Limiting Short-Time Current
300 A
Description
