This item is Discontinued.

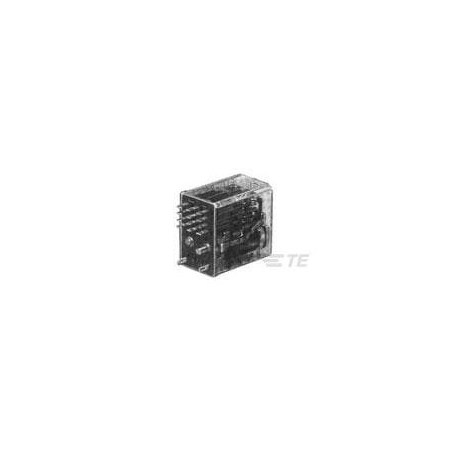

Te Connectivity R10-E1Y1-SS1.0K=R10 2-1393766-9

R10-E1Y1-SS1.0K=R10 (Discontinued)

  • Mfr # 2-1393766-9
  • Zoro # G400984235
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1393766-9
Zoro #
G400984235
UPC #
-
Country of Origin
Mexico

Dimensions

Product Length
1.165 in
Product Height
1.189 in
Product Width
.736 in
Length Class (Mechanical)
25 to 30 mm
Width Class (Mechanical)
16 to 20 mm
Height Class (Mechanical)
30 to 40 mm

Details

Contact Material
Ag
Contact Current Class
16 A, 2 to 5 A
Contact Voltage Rating
120 VAC
Coil Resistance
1000 Ω
Insulation Initial Dielectric Between Open Contacts
500 Vrms
Contact Arrangement
1 Form C (CO)
Environmental Ambient Temperature Class
70 to 85°C
Actuating System
DC
Contact Switching Load (Min)
100mA @ 12V
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
Coil Power Rating Class
0 to 100 mW
Contact Number of Poles
1
Environmental Ambient Temperature (Max)
75°C
Power Relay Type
Industrial Panel Plug-In
Coil Voltage Rating
6 VDC
Insulation Initial Resistance
10000 MΩ
Operating Temperature Range
-55 to 75°C
Coil Magnetic System
Monostable, DC
Coil Special Features
Sensitive Version
Terminal Type
Solder, Plug-In
Environmental Category of Protection
RTI
Relay Mounting Type
Socket
Contact Current Rating (Max)
3A
Coil Power Rating DC
40 mW
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
