This item is Discontinued.

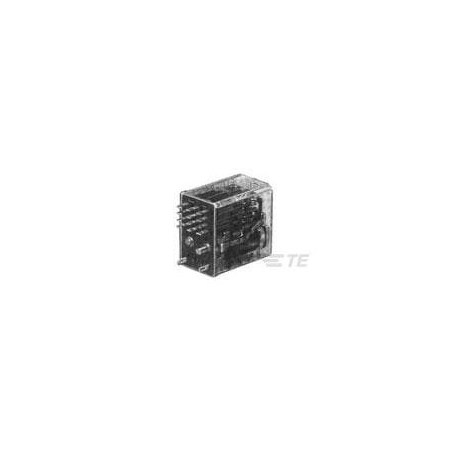

Te Connectivity R10-E1Z6-J2.5K=R10 8-1393766-3

R10-E1Z6-J2.5K=R10 (Discontinued)

  • Mfr # 8-1393766-3
  • Zoro # G100984535
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-1393766-3
Zoro #
G100984535
UPC #
-
Country of Origin
Mexico

Dimensions

Height Class (Mechanical)
30 to 40 mm
Width Class (Mechanical)
16 to 20 mm
Product Height
1.189 in
Product Length
1.165 in
Product Width
.736 in
Length Class (Mechanical)
25 to 30 mm

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Solder, Plug-In
Contact Material
Ag
Contact Current Rating (Max)
2A
Contact Number of Poles
6
Coil Special Features
Sensitive Version
Environmental Ambient Temperature (Max)
75°C
Contact Switching Load (Min)
1mA @ 12V
Coil Magnetic System
Monostable, DC
Operating Temperature Range
-55 to 75°C
Environmental Ambient Temperature Class
70 to 85°C
Contact Special Features
Bifurcated/Twin Contacts
Contact Voltage Rating
120 VAC
Environmental Category of Protection
RTI
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
Insulation Initial Dielectric Between Open Contacts
500 Vrms
Contact Arrangement
6 Form C (CO)
Coil Power Rating Class
200 to 300 mW
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
Coil Power Rating DC
250 mW
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Coil Resistance
2500 Ω
Actuating System
DC
Insulation Initial Resistance
10000 MΩ
Contact Current Class
16 A, 0 to 2 A
Power Relay Type
Industrial Panel Plug-In
