This item is Discontinued.

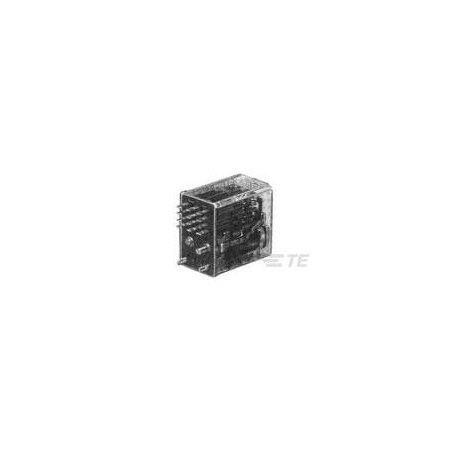

Te Connectivity R10S-E1P1-J1.0K=R10 6-1393769-7

R10S-E1P1-J1.0K=R10 (Discontinued)

  • Mfr # 6-1393769-7
  • Zoro # G900985497
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-1393769-7
Zoro #
G900985497
UPC #
-
Country of Origin
Mexico

Dimensions

Product Length
.949 in
Product Height
1.189 in
Height Class (Mechanical)
30 to 40 mm
Product Width
.736 in
Width Class (Mechanical)
16 to 20 mm
Length Class (Mechanical)
20 to 25 mm

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Solder, Plug-In
Contact Material
Ag
Environmental Category of Protection
RTI
Contact Number of Poles
1
Environmental Ambient Temperature (Max)
75°C
Coil Power Rating DC
10 mW
Contact Switching Load (Min)
0mA @ 0V
Operating Temperature Range
-55 to 75°C
Actuating System
DC
Environmental Ambient Temperature Class
70 to 85°C
Insulation Initial Resistance
10000 MΩ
Contact Current Rating (Max)
3A
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
Coil Power Rating Class
0 to 100 mW
Coil Magnetic System
Monostable, DC
Coil Resistance
1000 Ω
Contact Current Class
2 to 5 A, 16 A
Power Relay Type
Industrial Panel Plug-In
Contact Special Features
Bifurcated/Twin Contacts
Contact Voltage Rating
120 VAC
Coil Special Features
Sensitive Version
Contact Arrangement
1 Form C (CO)
Contact Plating Material
Gold
Insulation Initial Dielectric Between Open Contacts
500 Vrms
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
