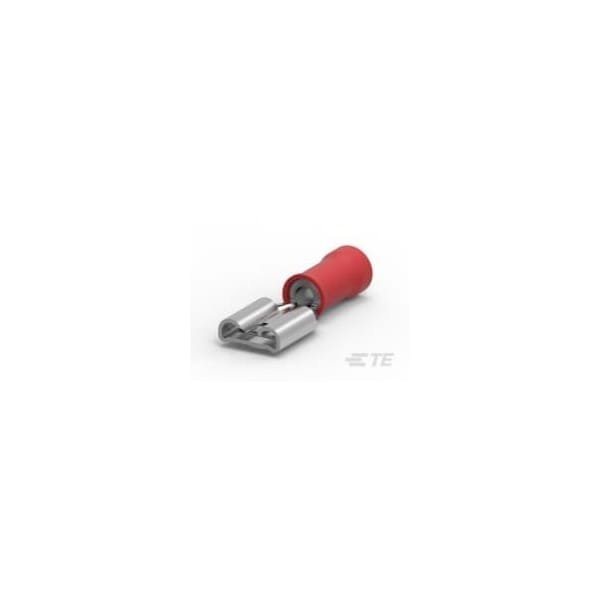

Te Connectivity RECEPT PIDG FASTON 22-18 205 640911-1 - main

RECEPT PIDG FASTON 22-18 205

  • Mfr # 640911-1

  • Zoro # G500976666

product price: $0.52
/ea
Sold in multiples of 167 for $86.84

Key Features

Wire Size
509 - 1900 CMA
Overall Length
.8 in
Terminal Type
Receptacle
Fully Insulated
No
FASTON
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
640911-1
Zoro #
G500976666
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
509 - 1900 CMA
Overall Length
.8 in
Wire Insulation Diameter (Max)
.135 in
Receptacle Stock Thickness
.016 in
Mating Tab Thickness
.032 in
Mating Tab Width
.205 in

Details

Terminal Type
Receptacle
Fully Insulated
No
FASTON
Yes
Terminal Orientation
Straight
Mating Retention Type
Dimple
Disconnect Type
Quick Disconnect Pin
Insulated
Yes
Insertion Force
Normal
Discrete Wire Type
Stranded
Crimp Type
F-Crimp
Voltage (Max)
300 V
Wire Insulation Support
With
Barrel Color
Red
Operating Temperature Range
105 °C
Plating Material
Tin
Terminates To
Wire & Cable
CSA Certified
Yes
Insulation Material
Nylon
RU (UL Component Program)
Approved
