  11. RECEPT PIDG FASTON 22-18 250
This item is Discontinued.

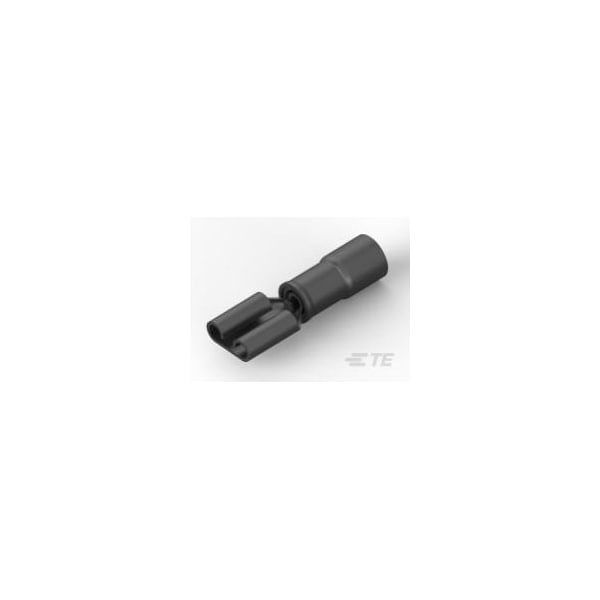

Te Connectivity RECEPT PIDG FASTON 22-18 250 8-640903-1

RECEPT PIDG FASTON 22-18 250 (Discontinued)

  • Mfr # 8-640903-1
  • Zoro # G300976361
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-640903-1
Zoro #
G300976361
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
22 - 18 AWG
Overall Length
.9 in
Mating Tab Width
.25 in
Accepts Wire Insulation Diameter Range
.14 in
Wire Insulation Diameter (Max)
.14 in
Mating Tab Thickness
.032 in

Details

Terminal Type
Receptacle
Barrel Type
Closed
Barrel Color
Red
Insertion Force
Normal
Terminal Orientation
Straight
Insulated
Yes
Terminal & Splice Style
Receptacle
Crimp Type
Compression
Terminates To
Wire & Cable
RU (UL Component Program)
Approved
Contact Base Material
Brass
Voltage (Max)
300 V
Fully Insulated
No
Mating Retention Type
Dimple
FASTON
Yes
CSA Certified
Yes
Insulation Material
Nylon
Plating Material
Tin
Wire Insulation Support
With
Discrete Wire Type
Stranded
Operating Temperature Range
105 °C
Disconnect Type
Quick Disconnect Pin
