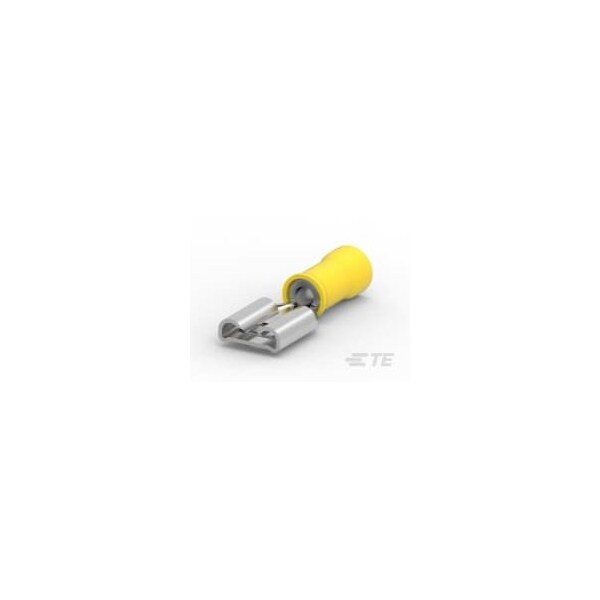

RECEPT PIDG FASTON 26-24 187
Mfr # 641321-1
Zoro # G500976529
product price:Â $0.51
/ea
Sold in multiples of 171 for $87.21
Key Features
Overall Length
.7 in
Terminal Type
Receptacle
Discrete Wire Type
Stranded
Mating Retention Type
Dimple
Mating Tab Width
.187 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 641321-1
- Zoro #
- G500976529
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- .7 in
- Mating Tab Width
- .187 in
- Wire Insulation Diameter (Max)
- .082 in
- Mating Tab Thickness
- .02 in
- Receptacle Stock Thickness
- .016 in
Details
- Terminal Type
- Receptacle
- Discrete Wire Type
- Stranded
- Mating Retention Type
- Dimple
- Insulated
- Yes
- Terminal Orientation
- Straight
- Disconnect Type
- Quick Disconnect Pin
- FASTON
- Yes
- Barrel Color
- Yellow
- Operating Temperature Range
- 105 °C
- Wire Insulation Support
- With
- Crimp Type
- F-Crimp
- Terminates To
- Wire & Cable
- Insulation Material
- Nylon
- Voltage (Max)
- 300 V
- Insertion Force
- Normal
- Fully Insulated
- No
- Plating Material
- Tin
