This item is Discontinued.

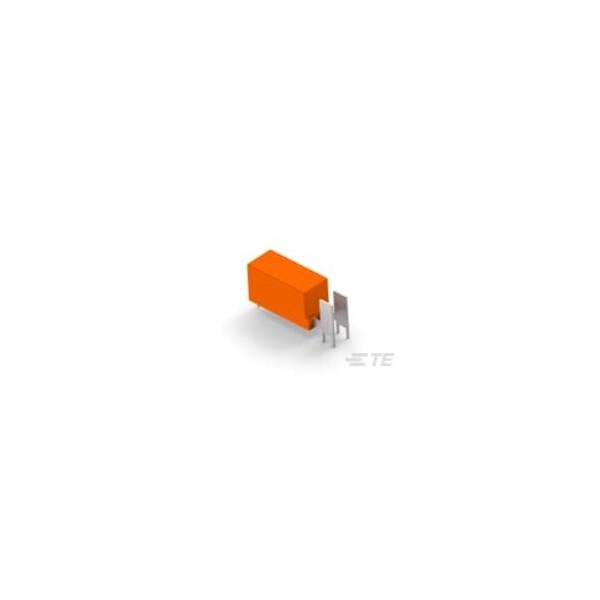

Te Connectivity RFH34006WG 3-1415520-1

RFH34006WG (Discontinued)

  • Mfr # 3-1415520-1
  • Zoro # G601025027
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-1415520-1
Zoro #
G601025027
UPC #
-
Country of Origin
China

Dimensions

Width
12.7 mm [ .5 in ]
Length
29 mm [ 1.142 in ]
Height
16 mm [ .63 in ]

Details

Item
General Purpose Relay
Mounting Style
PCB
Electrical Connection
PCB-THT, Quick Connect
Coil Voltage
6V DC
Contact Material
AgNi90/10
Coil Special Features
UL Coil Insulation Class F
Insulation Creepage Class
5.5 to 8mm
Contact Limiting Continuous Current (A)
16
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Insulation Clearance Class
5 to 8mm
Coil Magnetic System
Monostable, DC
Insulation Creepage Between Contact and Coil
8 mm [ .315 in ]
Insulation Clearance Between Contact and Coil
8 mm [ .315 in ]
Contact Current Class
10 to 20 A, Greater Than 16A
Environmental Ambient Temperature Class
85 to 105°C
Insulation Special Features
Tracking Index of Relay Base PTI250
Contact Number of Poles
1
Contact Switching Load (Min)
500mA @ 12V
Contact Voltage Rating (VAC)
250
Environmental Category of Protection
RTII
Contact Limiting Making Current (A)
25
Contact Switching Voltage (Max) (VAC)
400
Coil Power Rating Class
300 to 400 mW
Coil Resistance (Ω)
90
Contact Current Rating (A)
16
Contact Limiting Breaking Current (A)
16
Coil Power Rating (DC) (mW)
400
Insulation Initial Dielectric Between Open Contacts (Vrms)
1000
Environmental Ambient Temperature (Max)
105 °C [ 221 °F ]
Contact Arrangement
1 Form A (NO)
Contact Limiting Short-Time Current (A)
16
