Shop TE CONNECTIVITY

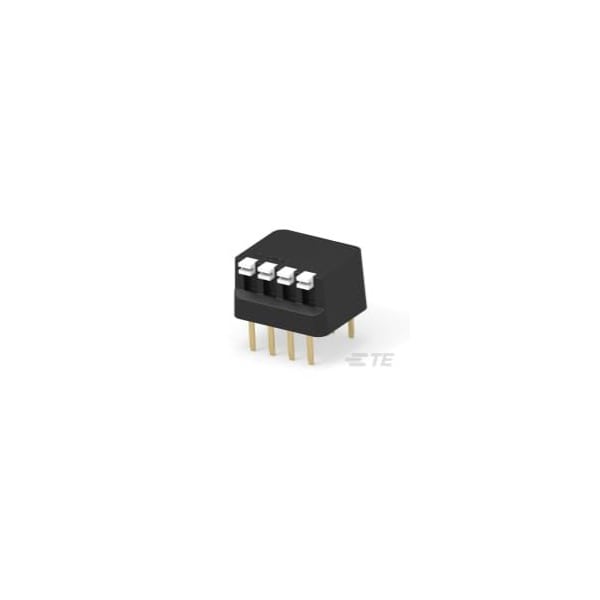

RIGHT ANGLE DIP SW 4 P SEALED

  • Mfr # 1-5435802-5

  • Zoro # G100965527

product price:
$
2.55
/ea
Sold in multiples of 50 for $127.50

Key Features

Length
12.19 mm [ .48 in ]
Height
7.36 mm [ .29 in ]
Switch Type
DIP
Housing Material
Polyester GF
Termination Post Length
3.56 mm [ .14 in ]
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-5435802-5
Zoro #
G100965527
UPC #
-
Country of Origin
Mexico

Dimensions

Length
12.19 mm [ .48 in ]
Height
7.36 mm [ .29 in ]
Termination Post Length
3.56 mm [ .14 in ]
Contact Mating Area Plating Thickness (µin)
30

Details

Switch Type
DIP
Housing Material
Polyester GF
Low Profile
Yes
Seal Type
Strippable
UL Flammability Rating
UL 94V-0
Number of Switches
4
Configuration (Pole-Throw)
Single Pole - Single Throw
Housing Color
Black
Contact Mating Area Plating Material
Gold
Mounting Type
Through Hole
Number of Positions
4
Auto-Insertable
No
Actuator Style
Piano (Side Actuated)
Contact Base Material
Copper Alloy
Solder Tail Contact Plating
Tin
Mounting Angle
Vertical
Contact Current Rating (A)
1.5
Operating Temperature Range (°C)
-55 to 105
Product Type
Switch
Sealed
Yes
Voltage Rating (VDC)
50
Centerline
2.54 mm [ .1 in ]
