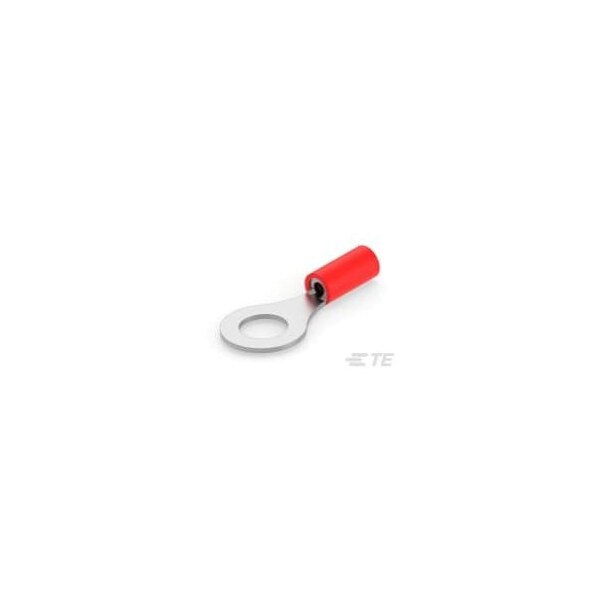

Ring Terminal, 0.265 in Stud Size, 1.65 mm², 600 V, Vinyl Insulated, Red
Mfr # 8-34150-1
Zoro # G600976986
product price: $0.63
/ea
Sold in multiples of 139 for $87.57
Key Features
Terminal Shape
Standard Ring Tongue
Minimum Wire Size
22 AWG
Insulation Type
Vinyl
Maximum Voltage
600 V
Maximum Operating Temperature
105 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8-34150-1
- Zoro #
- G600976986
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Minimum Wire Size
- 22 AWG
- Stud Size
- 1/4 in
- Overall Length
- 1.09 in
- Barrel Inside Dia.
- 0.145 in
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Red
- Insulation Type
- Vinyl
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 105 Degrees C
- Wire Type
- Solid or Stranded, Regular Wire
- Seam
- Standard, Closed Barrel
- Features
- Wire Insulation Support
- Insulation Dia
- 0.105 to 0.14 in
- Terminal Orientation
- Straight
- Contact Plating Material
- Tin, Copper
- Contact Material
- Copper
- Standards
- UL & CSA Listed
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- 0 Degrees C
- Termination Style
- Crimp
