Shop TE CONNECTIVITY

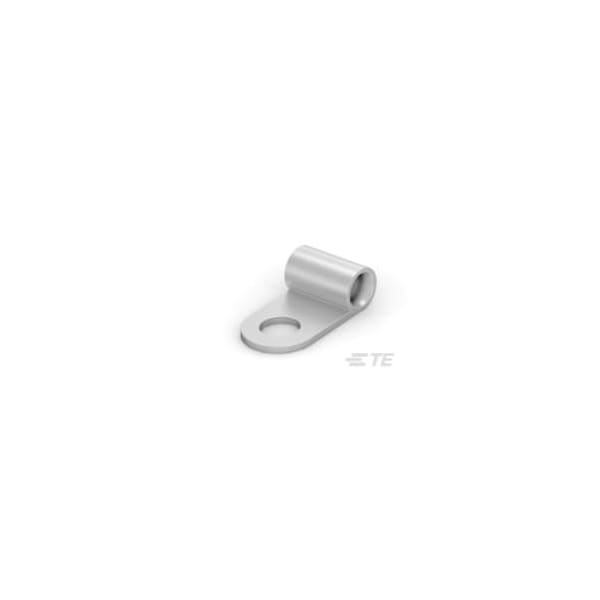

Ring Terminal, #10 Stud Size, 10 AWG, Bare Insulated

  • Mfr # 36271

  • Zoro # G200927432

product price:
$
1.45
/ea
Sold in multiples of 75 for $108.75

Key Features

Terminal Shape
Standard Ring Tongue
Maximum Wire Size
10 AWG
Insulation Coverage
None
Insulation Type
Bare
Stud Size
#10
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36271
Zoro #
G200927432
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Stud Size
#10
Barrel Inside Dia.
0.129 in
Overall Length
0.7 in
Cable Diameter
22.23-25.40mm (.875-1.000")
Thread Size
1 1/4" NPT
Minimum Wire Size
12 AWG

Details

Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Insulation Coverage
None
Insulation Type
Bare
Maximum Operating Temperature
170 Degrees C
Standards
UL & CSA Listed
Wire Type
Solid or Stranded, Regular Wire
Seam
Standard, Closed Barrel
Contact Plating Material
Copper, Tin
Terminal Orientation
Straight
Gender
Male
NEMA Rating
NEMA 4
Material - Body
Aluminum
Series
130097
Material - Grip
Stainless Steel
Hazardous Locations
Class I, Div. 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2
CSA
LR32159
Contact Material
Copper
Termination Style
Crimp
Insulation Color
Bare
Minimum Operating Temperature
0 Degrees C
