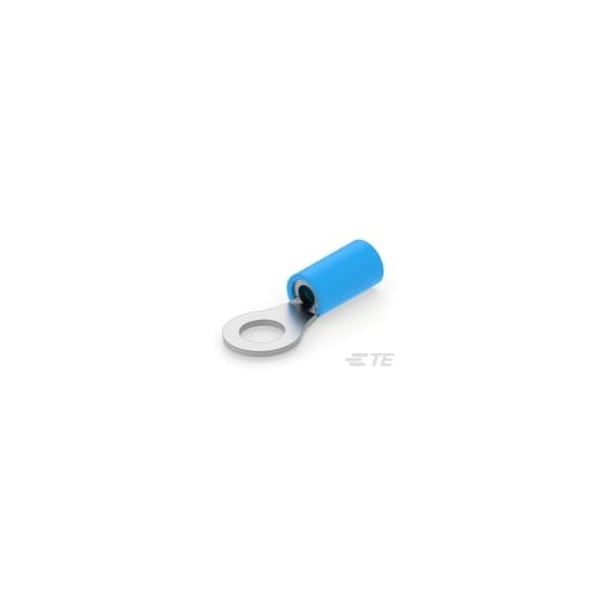

Ring Terminal, #10 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue
Mfr # 8-34161-1
Zoro # G800927351
product price:Â
$
0.63
/ea
Sold in multiples of 200 for $126.00
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Color
Blue
Maximum Wire Size
14 AWG
Insulation Type
Vinyl
Stud Size
#10
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8-34161-1
- Zoro #
- G800927351
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 14 AWG
- Stud Size
- #10
- Barrel Inside Dia.
- 0.195 in
- Overall Length
- 0.87 in
- Minimum Wire Size
- 16 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Blue
- Insulation Type
- Vinyl
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Seam
- Standard, Closed Barrel
- Wire Type
- Solid or Stranded, Regular Wire
- Features
- Wire Insulation Support
- Terminal Orientation
- Straight
- Contact Plating Material
- Tin, Copper
- Insulation Dia
- 0.118 to 0.193 in
- Termination Style
- Crimp
- Contact Material
- Copper
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- 0 Degrees F
- Standards
- UL & CSA Listed
