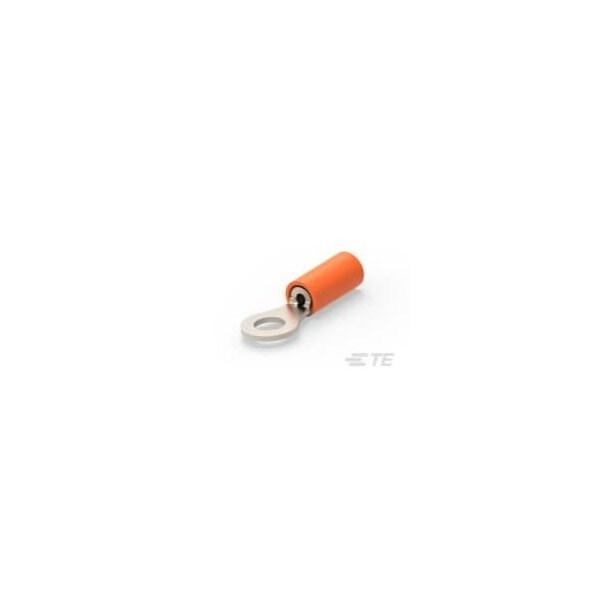

Ring Terminal, #10 Stud Size, 16 AWG, 300 V, PTFE Insulated
Mfr # 50836-1
Zoro # G000926895
product price:Â
$
7.75
/ea
Sold in multiples of 14 for $108.50
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Type
PTFE
Maximum Voltage
300 V
Maximum Operating Temperature
550 Degrees F
Seam
Standard, Closed Barrel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50836-1
- Zoro #
- G000926895
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Stud Size
- #10
- Overall Length
- 0.855 in
- Minimum Wire Size
- 18 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Type
- PTFE
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 550 Degrees F
- Seam
- Standard, Closed Barrel
- Features
- Wire Insulation Support
- Wire Type
- Regular Wire
- Insulation Dia
- 0.055 to 0.135 in
- Terminal Orientation
- Offset, Straight
- Contact Plating Material
- Nickel, Copper
- Contact Material
- Copper
- Minimum Operating Temperature
- 0 Degrees F
- Insulation Coverage
- Partial Coverage
- Standards
- UL & CSA Listed
- Termination Style
- Crimp
