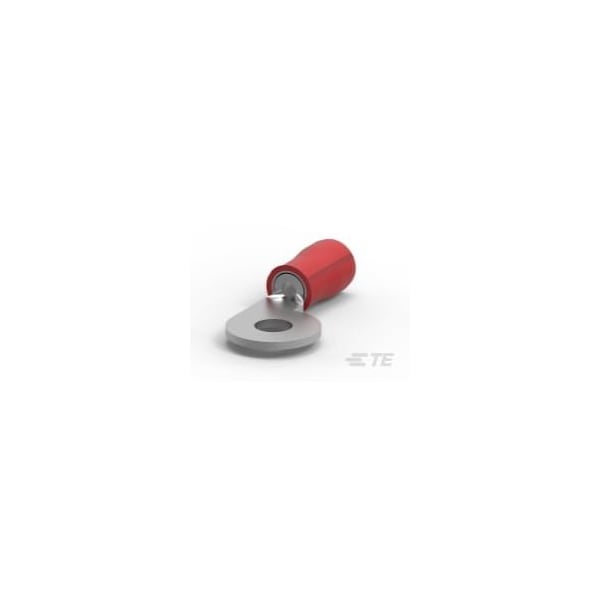

Ring Terminal, #10 Stud Size, 20 AWG, 300 V, Nylon Insulated, Red
- Mfr # 52284-3
- Zoro # G000942918
product price:Â
$
1.85
/ea
Sold in multiples of 150 for
$277.50
Key Features
Insulation Color
Red
Maximum Wire Size
20 AWG
Insulation Type
Nylon
Stud Size
#10
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 52284-3
- Zoro #
- G000942918
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 20 AWG
- Stud Size
- #10
- Overall Length
- 0.946 in
- Minimum Wire Size
- 20 AWG
Details
- Item
- Ring Terminal
- Insulation Color
- Red
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 221 Degrees F
- Wire Type
- Regular Wire
- Seam
- Standard, Closed Barrel
- Features
- Wire Insulation Support
- Terminal Orientation
- Offset, Straight
- Insulation Dia
- 0.046 to 0.11 in
- Contact Plating Material
- Tin, Copper
- Terminal Shape
- Offset Ring Tongue
- Contact Material
- Copper
- Insulation Coverage
- Partial Coverage
- Termination Style
- Crimp
- Minimum Operating Temperature
- 0 Degrees F
- Standards
- UL & CSA Listed
