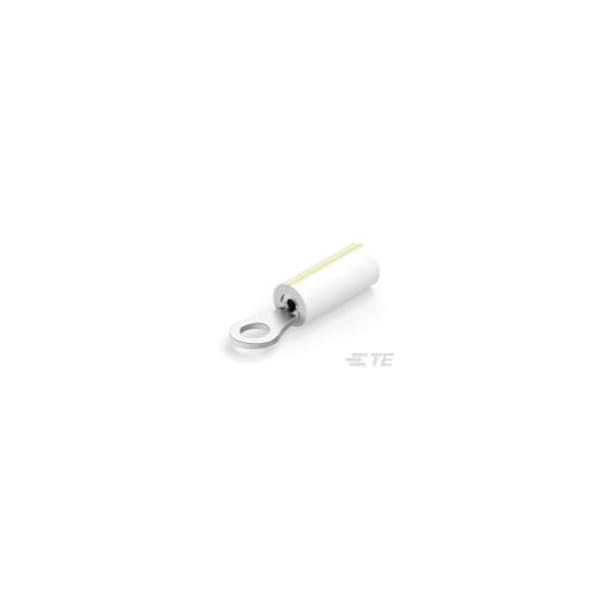

Ring Terminal, #4 Stud Size, 24 AWG, PVF2 Insulated, Bare
Mfr # 696420-2
Zoro # G400926792
product price:Â
$
1.35
/ea
Sold in multiples of 70 for $94.50
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Color
Natural
Maximum Wire Size
24 AWG
Insulation Type
PVF2
Stud Size
#4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 696420-2
- Zoro #
- G400926792
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 24 AWG
- Stud Size
- #4
- Barrel Inside Dia.
- 0.095 in
- Overall Length
- 0.741 in
- Minimum Wire Size
- 26 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Natural
- Insulation Type
- PVF2
- Maximum Operating Temperature
- 302 Degrees F
- Features
- Sheared Terminal; Wire Insulation Support
- Wire Type
- Stranded, Regular Wire
- Seam
- Long, Closed Barrel
- Contact Plating Material
- Copper, Tin
- Terminal Orientation
- Straight
- Insulation Dia
- 0.032 to 0.082 in
- Maximum Voltage
- 300 V
- Contact Material
- Copper
- Termination Style
- Crimp
- Minimum Operating Temperature
- 0 Degrees F
- Standards
- UL & CSA Listed
- Insulation Coverage
- Partial Coverage
