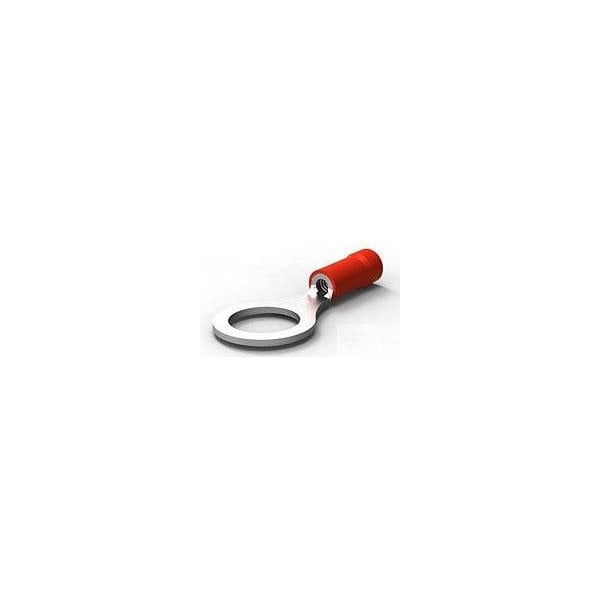

Ring Terminal, 5/16 in Stud Size, 16 AWG, 600 V, PVC Insulated, Red
- Mfr # 171511-4
- Zoro # G605899556
product price:Â
$
0.37
/ea
Sold in multiples of 300 for $111.00
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Color
Red
Insulation Type
PVC
Maximum Voltage
600 V
Maximum Operating Temperature
90 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 171511-4
- Zoro #
- G605899556
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Maximum Wire Size
- 18 AWG
- Stud Size
- 5/16 in
- Overall Length
- 1.09 in
- Minimum Wire Size
- 22 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Red
- Insulation Type
- PVC
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 90 Degrees C
- Seam
- Standard, Closed Barrel
- Wire Type
- Regular Wire
- Terminal Orientation
- Straight
- Contact Plating Material
- Copper, Tin
- Insulation Dia
- 0.104 to 0.14 in
- Termination Style
- Crimp
- Insulation Coverage
- Partial Coverage
- Contact Material
- Copper
- Standards
- UL & CSA Listed
