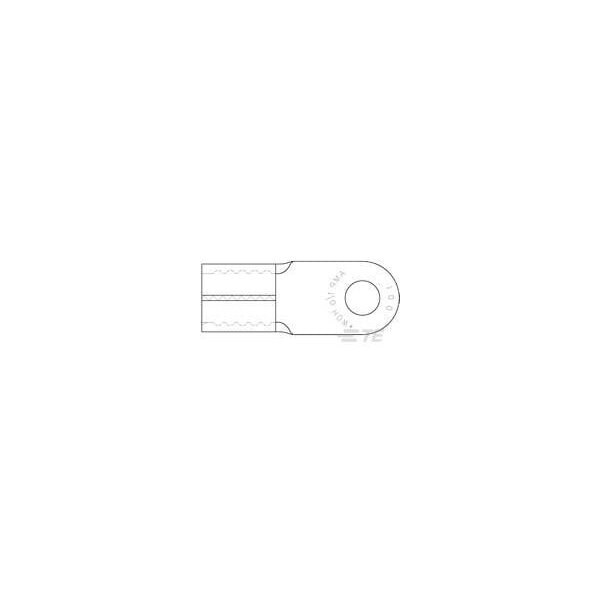

Ring Terminal, 5/16 in Stud Size, 53.5 mm², Bare Insulated
Mfr # 1958430-1
Zoro # G700926607
product price: $18.15
/ea
Sold in multiples of 10 for $181.50
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
1/0 AWG
Insulation Coverage
None
Insulation Type
Bare
Stud Size
5/16 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 1958430-1
- Zoro #
- G700926607
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 1/0 AWG
- Stud Size
- 5/16 in
- Barrel Inside Dia.
- 0.439 in
- Overall Length
- 1.928 in
- Minimum Wire Size
- 1/0 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Coverage
- None
- Insulation Type
- Bare
- Maximum Operating Temperature
- 649 Degrees F
- Wire Type
- Solid or Stranded
- Seam
- Standard, Closed Barrel
- Contact Plating Material
- Nickel, Copper
- Terminal Orientation
- Straight
- Minimum Operating Temperature
- 0 Degrees F
- Contact Material
- Copper
- Insulation Color
- Bare
- Termination Style
- Crimp
