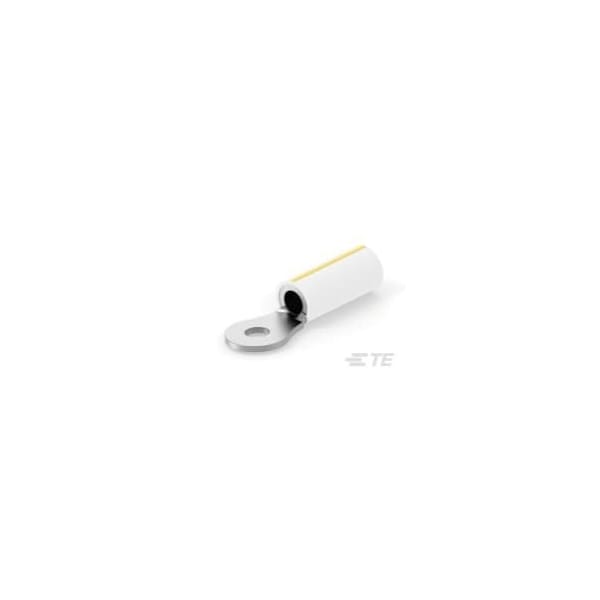

Ring Terminal, #6 Stud Size, 10 AWG, PVF2 Insulated
- Mfr # 696424-4
- Zoro # G300926793
product price:Â
$
1.35
/ea
Sold in multiples of 5000 for $6,750.00
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
10 AWG
Insulation Type
PVF2
Maximum Operating Temperature
302 Degrees F
Seam
Long, Closed Barrel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 696424-4
- Zoro #
- G300926793
- UPC #
- -
- Country of Origin
- United States
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Type
- PVF2
- Maximum Operating Temperature
- 302 Degrees F
- Seam
- Long, Closed Barrel
- Wire Type
- Stranded, Regular Wire
- Features
- Sheared Terminal; Wire Insulation Support
- Insulation Dia
- 0.15 to 0.23 in
- Contact Plating Material
- Copper, Tin
- Terminal Orientation
- Straight
- Termination Style
- Crimp
- Standards
- UL & CSA Listed
- Minimum Operating Temperature
- 0 Degrees F
- Insulation Color
- Yellow
- Contact Material
- Copper
- Maximum Voltage
- 300 V
- Insulation Coverage
- Partial Coverage
